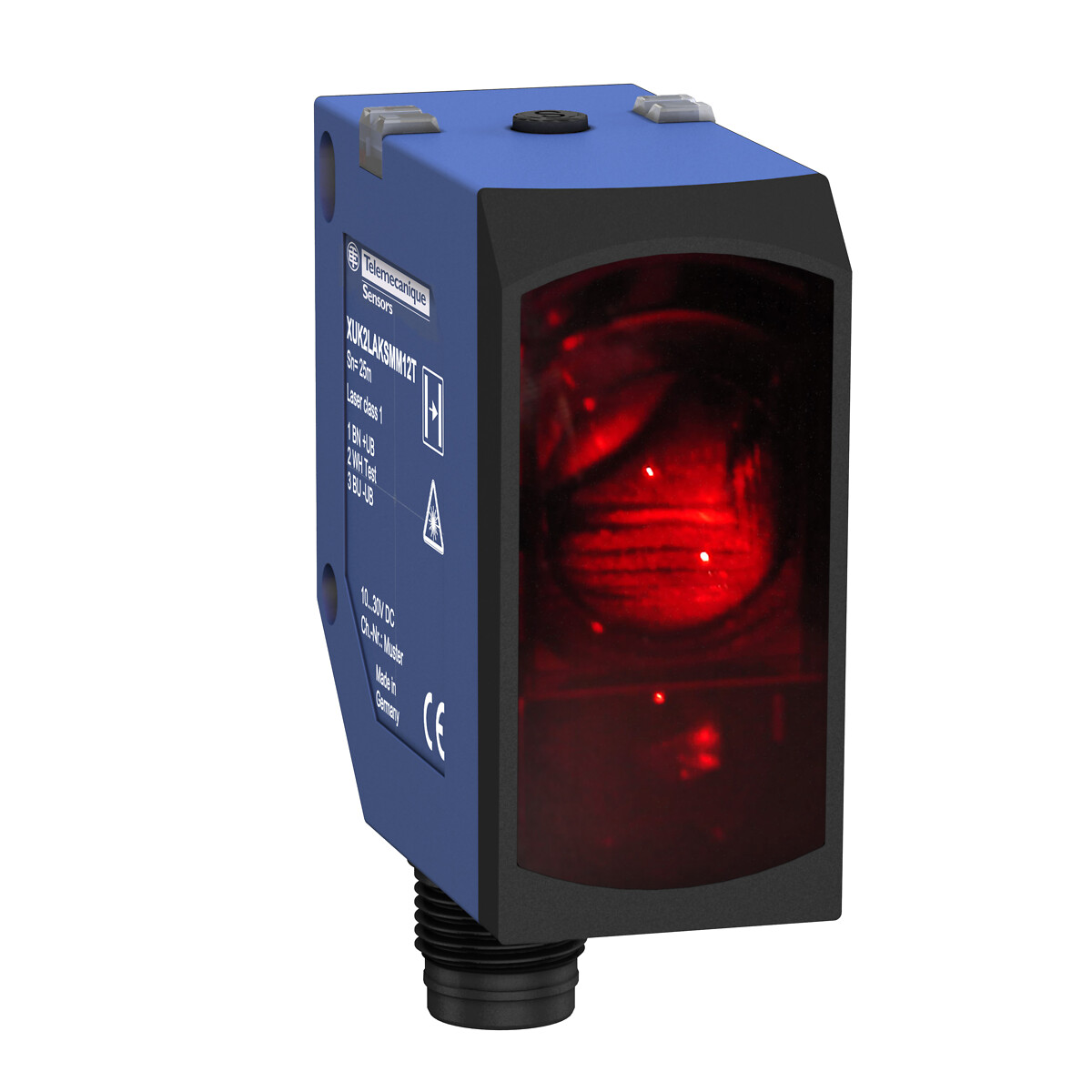

XUK2LAKSMM12T
Photoelectric sensors XU, photo electric laser sensor, XUK, thru beam transmitter, Sn 30 m -10...30 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Application material handling
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUK
Sensor design
Compact 50 x 50
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Red laser thru beam class 1
Enclosure material
ABS/PC
Lens material
PMMA
Add on output
Without
Status LED
1 LED (green) for supply
Add on input
Test
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Maximum voltage drop
<2.4 V (closed state)
Current consumption
<= 30 mA no-load
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Product certifications
CE
cULus
Ecolab
cULus
Ecolab
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60947-5-2
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.672 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Receiver optical axis
- (2) Transmitter optical axis
Wiring Schemes Using M12 Connector
- 1 : (+)
- 2 : Test input (1)
- 3 : (-)
- 4 : Pin not connected
- BN : Brown
- WH : White
- BU : Blue
- +UB : External teach
- -UB : Pushbutton locking
- (1) Test input: +UB = test function (transmitter disconnected). -UB or not connected = normal operation
Curves
Excess Gain Curve
- (X) Distance (m)
- (Y) Gain
Curves
Size of Luminous Point
- (X) Distance (m)
- (Y) Gain
- (X) Distance (m)
- (Y) Size (mm)
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36769641
2024-02-07
36119819
Document name
Date
Size
2024-01-31
1290912
2024-01-01
1243526
Document name
Date
Size
Document name
Date
Size
2025-05-16
293144
Document name
Date
Size
2022-03-01
1637921
2022-03-01
1641042
Expand all
Related products & accessories

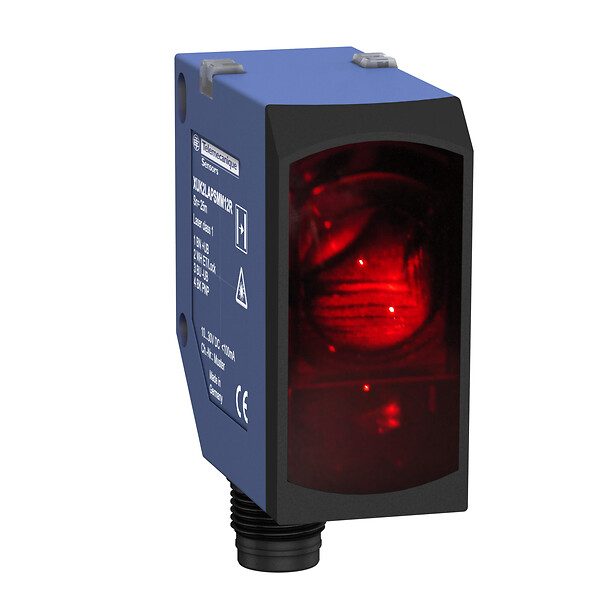

XUK2LAPSMM12R
