Photoelectric sensor XUK, BGS, Sn 0.7 m, 24...240 VAC/DC, cable 2 m, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Sensor name
XUK
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance
0.75-0.75 m diffuse with background suppression
Maximum sensing distance
0.75 m diffuse with background suppression
Wiring technique
5-wire
Detection system
Diffuse with background suppression
Delay response
25 ms
Indivisible sale quantity
1
Sensing range
> 0.1...5 m
Electrical durability
500000 cycles, cos f = 1 , operating rate <60 cyc/mn at 250 V
Electrical connection
Cable
Cable length
2 m
Cable composition
5 x 0.34 mm²
Supply voltage limits
20-264 V AC, 20-264 V DC
[Us] rated supply voltage
24...240 V AC/DC
Supply circuit type
AC/DC
Switching capacity in mA
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 35 mA no-load
Emission
Infrared diffuse with background suppression
Cable outer diameter
6 mm
Setting-up
Self teaching
Output type
Relay
Type of output signal
Discrete
Discrete output function
1 C/O
Switching frequency
20 Hz
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state
Delay first up
60 ms
Delay recovery
25 ms
Height
50 mm
Width
18 mm
Depth
50 mm
Product weight
0.15 kg
IP degree of protection
IP65 double insulation conforming to IEC 60529
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for operation
-20-60 °C
Ambient air temperature for storage
-30…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60947-5-2
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916037508
Package 1 height
13 cm
Package 1 width
4 cm
Package 1 length
9.5 cm
Package 1 weight
0.229 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916037505
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
5.553 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916037502
Package 3 height
13.2 cm
Package 3 width
4 cm
Package 3 length
9.5 cm
Package 3 weight
0.181 kg
Expand all
Technical Drawings
Dimensions
Connections and Schemes
Cable Connection, Relay Output
- AC/DC : BN (Blue)
- AC/DC : BN (Brown)
- Relay common : GY (Grey)
- NO : BK (Black), detection of object
- NC : WH (White), detection of object absence
Detection Curves
Variation of Usable Sensing Distance Su
Variation of Usable Sensing Distance Su
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)

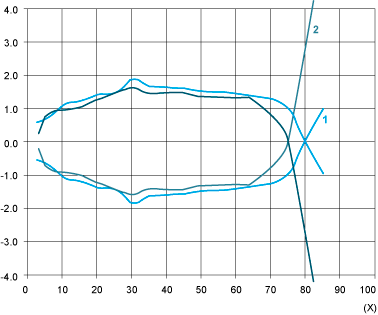

Detection Curves
Detection Curves
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
Detection Curves

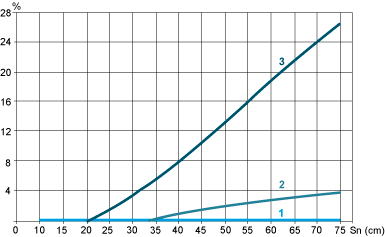

Relative Difference in Sensing Distances According to Object Colour
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
