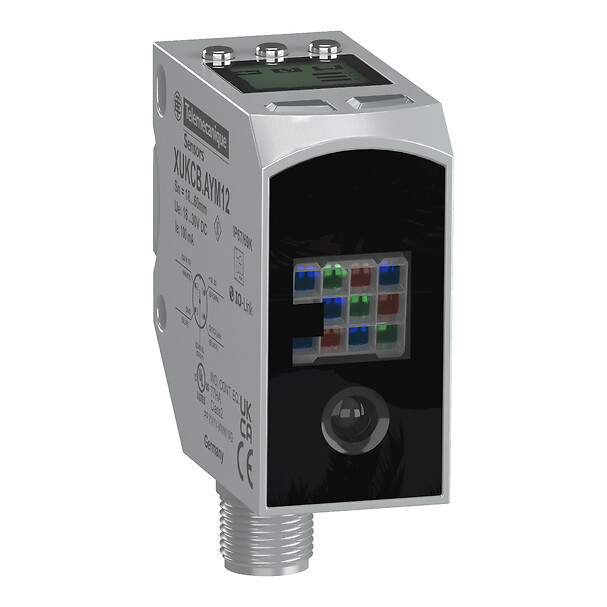

XUKCBSAYM12
Photoelectric sensors XUKC, Color, Short, Sn 60mm, IO-Link, Connector M12
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application packaging
Product specific application
Color detection
Enclosure material
Die cast zinc alloy
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12 adjustable through 90°, 5 pins
Material
Metal
Detection system
Diffuse
Emission
White LED diffuse
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
IOLINK
PNP/NPN autodetect
PNP/NPN autodetect
Delay response
180 MICROSECOND
Setting-up
Sensitivity by IO-Link
sensitivity by screen
sensitivity adjustment with teach mode
sensitivity by screen
sensitivity adjustment with teach mode
Current consumption
<= 60 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
Without, 100 mA
Status LED
1 LED (green/yellow) for power ON/status indicator
Sensing range
18...60 mm
Delay first up
150 MILLISECOND
Delay recovery
300 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
14.2 CENTIMETER
Package 1 weight
0.196 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.768 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
8
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
1.768 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
