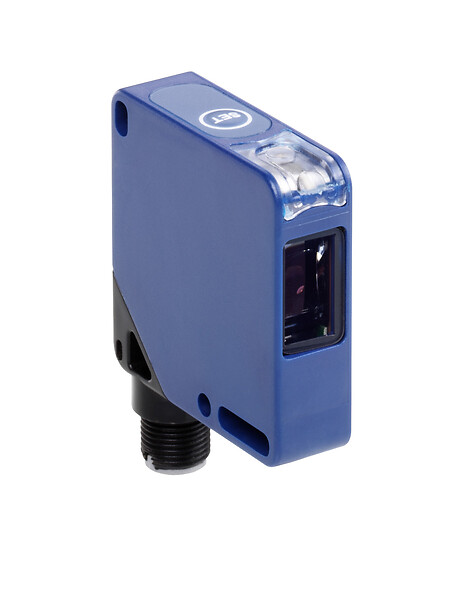

XUKR1NSMM12

Photoelectric sensors XU, color mark, Sn 20 mm, NC, M12 connector

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XUKR1NSMM12 is replaced by the following product:

XUMRAGAYM8

Photoelectric sensors XUMR, Contrast Mark reader, RGB, Sn 12mm, IO-Link, Connector M8

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
Application packaging
Product specific application
Colour mark
Enclosure material
ABS
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12 adjustable through 90°, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Diffuse
Emission
-
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC
Type of output signal
Discrete
Supply circuit type
DC
Resolution
0.5 mm
Discrete output type
NPN
Delay response
0.1 MILLISECOND
Setting-up
Sensitivity adjustment with teach mode
Current consumption
<= 30 mA no-load
Status LED
-
Output type
Solid state
Switching capacity in mA
<= 100 mA (reverse polarity, overload and short-circuit protection)
Lens material
Glass
Add on output
Without
Maximum voltage drop
<2 V (closed state)
Delay recovery
0.1 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) for 6 shocks on each axis conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
+/-0.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
42
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.505 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

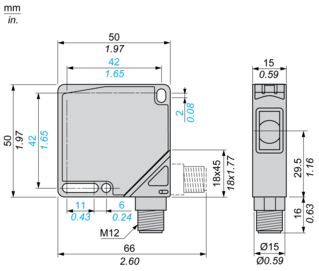

Dimensions

epds

Wiring Schemes

Connector Scheme

epds

Wiring Schemes

NPN Output

epds

Curves

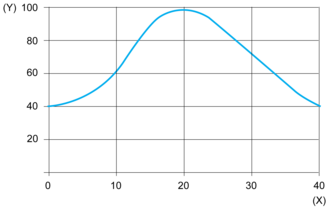

Detection Curve

epds

Curves

Detection Zone and Spot Size

epds
