XUM0ANSAL2

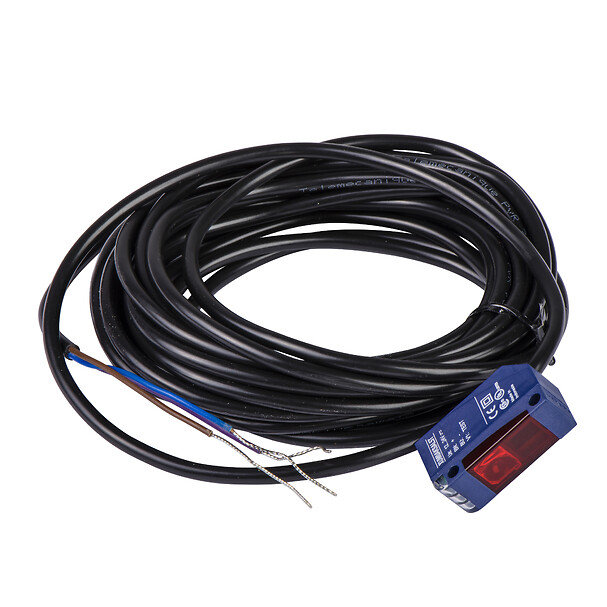

Photoelectric miniature sensor XUM, multimode, Sn 0...10 m, 12...24 VDC, cable 2 m, NPN, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose multimode
Sensor name
XUM
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance
3-3 m polarised reflex need reflector XUZC50, 10-10 m thru beam need a transmitter XUM0AKSAL2T, 0.1-0.1 m diffuse with background suppression, 0.4-0.4 m diffuse
Maximum sensing distance
14 m thru beam, 4 m polarised reflex, 0.1 m diffuse with background suppression, 0.55 m diffuse
Wiring technique
3-wire
Detection system
Multimode
Delay response
2 ms
Indivisible sale quantity
1
Sensing range
> 0...10 m
Electrical connection
Cable
Cable length
2 m
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Setting-up
Self teaching
Output type
Solid state
Type of output signal
Discrete
Add on output
With alarm output, 50 mA
Discrete output type
NPN
Discrete output function
1 NO or 1 NC programmable
Switching frequency
250 Hz
Status LED
1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Delay first up
100 ms
Delay recovery
2 ms
Height
34 mm
Width
12 mm
Depth
20 mm
Product weight
0.05 kg
IP degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916033845
Package 1 height
4.2 cm
Package 1 width
9.7 cm
Package 1 length
13.2 cm
Package 1 weight
0.05 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916033842
Package 2 height
30 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
2.479 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916033849
Package 3 height
4.2 cm
Package 3 width
9.7 cm
Package 3 length
13.2 cm
Package 3 weight
0.092 kg
Expand all
Technical Drawings
Dimensions
Wiring Schemes
Receiver, NPN Output
- BN : Brown
- BU : Blue
- BK : Black
Detection Curves
With Thru-beam Accessory (Thru-beam)
Detection Curves
Without Accessory (Diffuse)
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Without Accessory (Diffuse with background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
With reflector (Polarised reflex)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
