Photoelectric sensors XU, XUM, multi, Sn 0...10 m, 12...24 VDC, M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose multimode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Multimode
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Not applicable
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Add on output
With alarm output, 50 mA
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
240 Hz
250 Hz
250 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
100 MILLISECOND
Delay response
2 MILLISECOND
Delay recovery
2 MILLISECOND
Setting-up
Self teaching
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
3.195 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
352
Package 3 height
75 CENTIMETER
Package 3 width
40 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
28.88 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting and Clearance
Possible Orientation of Elbowed Connector
Wiring Schemes
M8 Connector
- 1 : (+)
- 3 : (-)
- 4 : OUT/Output
Wiring Schemes
Receiver, PNP Output
- 1 : (+)
- 3 : (-)
- 4 : OUT/Output
Detection Curves
With Thru-beam Accessory (Thru-beam)
Detection Curves
Without Accessory (Diffuse)
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Without Accessory (Diffuse with background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
With reflector (Polarised reflex)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Detection Curves
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
Variation of Usable Sensing Distance Su (Without accessory, with adjustable background suppression)
- 1 : White 90%
- 2 : Grey 18%
- 1 : White 90%
- 2 : Grey 18%
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36769641
2024-02-07
36119819
Document name
Date
Size
Document name
Date
Size
2025-01-13
8843040
Document name
Date
Size
Document name
Date
Size
Document name
Date
Size
Expand all
Related products & accessories

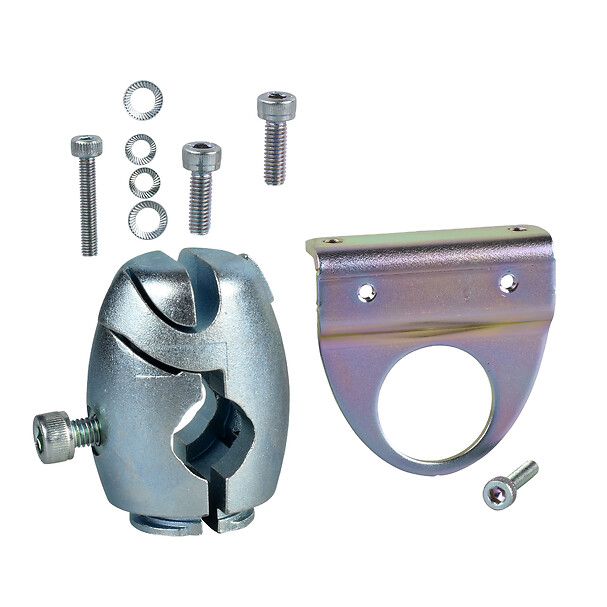

XUZ2001
Photoelectric sensors XU, accessory for sensor, 3D fixing kit, M12 rod

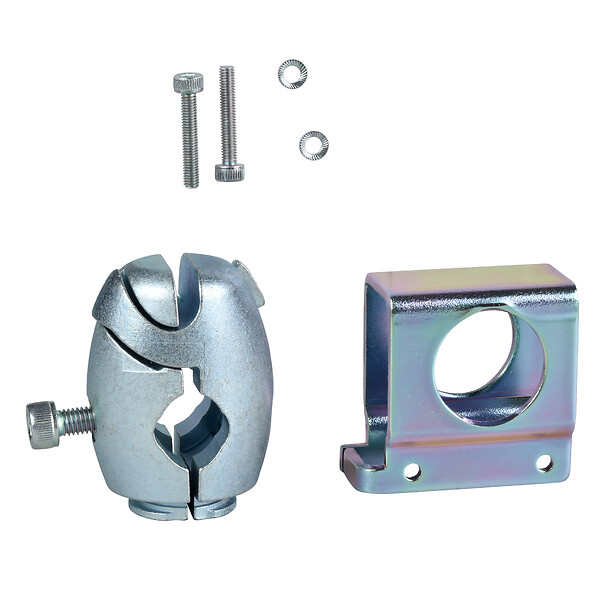

XUZ2003
