XUM2AKXBM8T

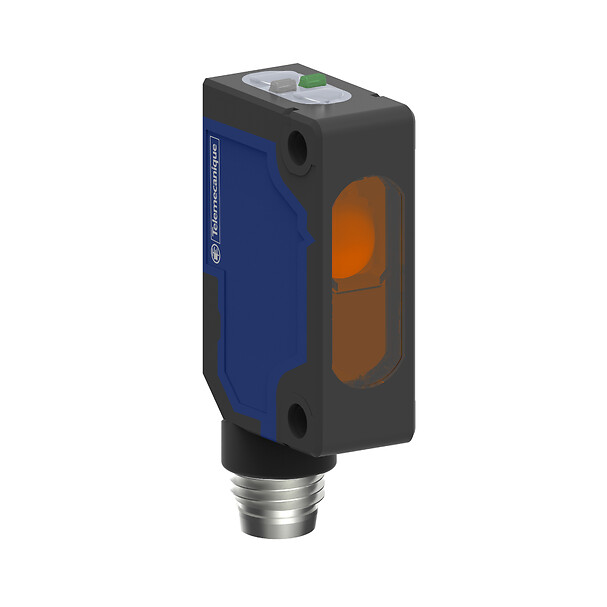

Photoelectric miniature emitter XUM, thru-beam, Sn 15 m, Smax 30 m, 24 V, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor transmitter
Sensor design
Miniature
Electrical connection
1 male connector M8, 4 pins
Material
Plastic
Wiring technique
2-wire
Detection system
Thru beam
Emission
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching frequency
1000 Hz
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Current consumption
20 mA no-load
Status LED
-
Lens material
PMMA
Sensing range
0...30 m
Maximum voltage drop
<2 V
Delay first up
100 MILLISECOND
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.11 CENTIMETER
Package 1 width
0.2 CENTIMETER
Package 1 length
0.32 CENTIMETER
Package 1 weight
20 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
960
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
24.21 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
