XUM2ANXBM8R

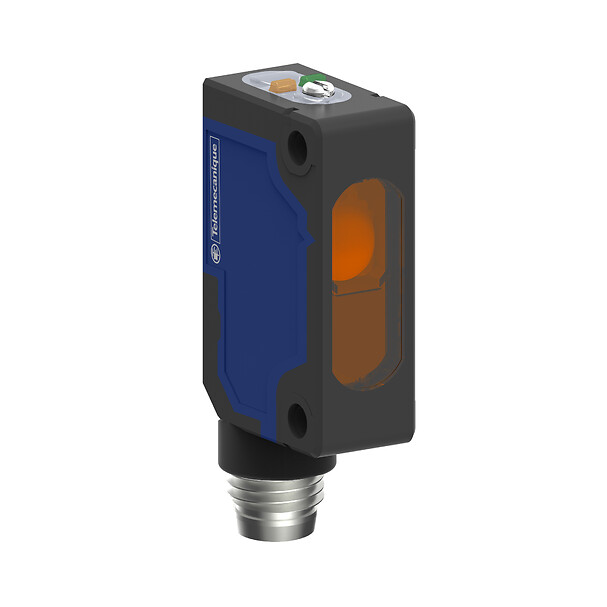

Photoelectric miniature receiver XUM, thru-beam, Smax 30 m, 24 V, M8, NPN, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor receiver
Sensor design
Miniature
Electrical connection
1 male connector M8, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Thru beam
Emission
-
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
1000 Hz
Discrete output type
NPN
Delay response
0.5 MILLISECOND
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Setting-up
Sensitivity by potentiometer
Current consumption
20 mA no-load
Status LED
-
Output type
Solid state
Lens material
PMMA
Sensing range
0...30 m
Maximum voltage drop
<2 V
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.11 CENTIMETER
Package 1 width
0.2 CENTIMETER
Package 1 length
0.32 CENTIMETER
Package 1 weight
20 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
60
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
960
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
24.21 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
