XUM2APCNL2R

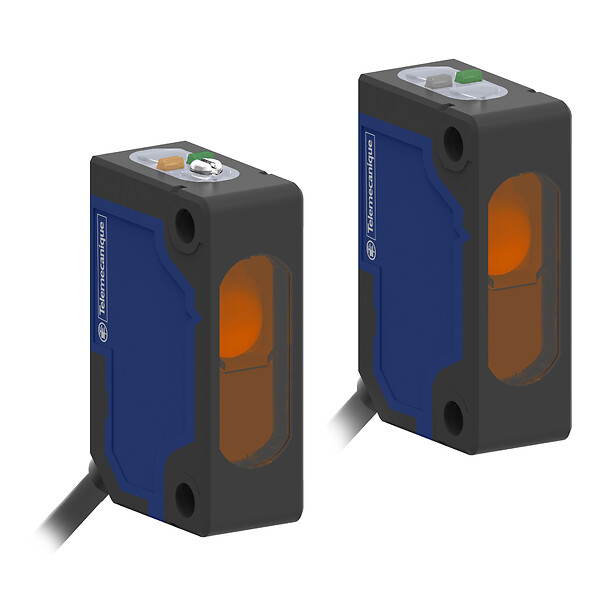

Photoelectric sensors XU, XUM, receiver, 15 m, 12...24 VDC, cable 2 m
End of commercialisation End of commercialization date : End of service date :
XUM2APCNL2R is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor receiver
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
15-15 m thru beam need a transmitter XUM2AKCNL2T
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Red thru beam
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Status LED
1 LED (red) for indicator light, 1 LED (green) for instability and supply on
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
1000 Hz
Maximum voltage drop
<3 V (closed state)
Current consumption
13 mA no-load
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
15 CENTIMETER
Package 1 length
15 CENTIMETER
Package 1 weight
63 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Receiver's Dimensions
- R : Reception
- (1) Output state LED on front face
Mounting and Clearance
- (1) Configuration switch
- (2) Output state LED
- (3) Stability and power on LED
Connections and Schemes
PNP
- BN : Brown
- BU : Blue
- BK : Black
Detection Curves
- (Y) Parallel movement (cm)
- (X) Distance (m)
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36769641
2024-02-07
36119819
Document name
Date
Size
7/18/2024
189932
7/18/2024
463747
Document name
Date
Size
2021-10-31
7679822
2022-09-01
5814698
