XUM4APSBL2

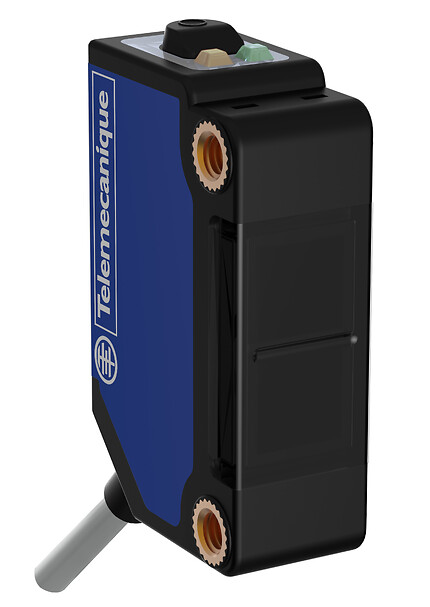

Photoelectric sensors XU, miniature, diffuse, Sn=100 mm, PNP, cable 2 m
End of commercialisation End of commercialization date : January 16th 2023 End of service date : January 16th 2023
XUM4APSBL2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse
Sensing range
> 0.01...0.1 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
Infrared diffuse, infrared diffuse
Enclosure material
PBT
Lens material
Modified polyarylate
Status LED
Stability: 1 LED (green), stability: 1 LED (green), stability: 1 LED (green), output state: 1 LED (orange), output state: 1 LED (orange), output state: 1 LED (orange)
Output type
Solid state
Wire insulation material
PVC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
500 Hz
Maximum voltage drop
<2 V
Current consumption
17 mA no-load
Delay first up
100 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Sensitivity adjustment by pushbutton
Supply voltage limits
10.2-26.4 V DC
Product certifications
CE
RCM
UL
RCM
UL
Vibration resistance
+/- 1.5 mm (f = 10-55 Hz)2 hours in each direction X, Y and Z conforming to IEC 60068-2-6
Shock resistance
500 m/s² for X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16 CENTIMETER
Package 1 width
2 CENTIMETER
Package 1 length
11 CENTIMETER
Package 1 weight
63 GRAM
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1920 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Pre-cable Version
Pre-cable Version
- (1) Output indicator (orange)
- (2) Stability indicator (green)
- (3) Setting pushbutton
- (4) Reception
- (5) Transmission
Connections and Schema
Connections and Schema
PNP
- BN : Brown
- BU : Blue
- BK : Black
Mounting and Clearance
Tightening Torque
- (1) Base mounting fixing bracket

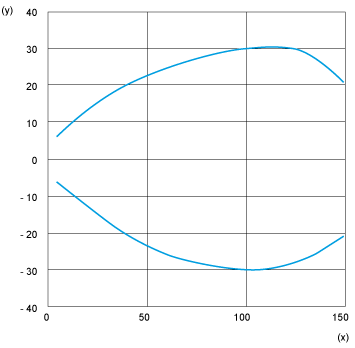

Performance Curves
Diffuse System
- (y) Detection area in mm
- (x) Distance in mm
