XUM5APXBL2
Photoelectric sensors XU, miniature, diffuse long, Smax=1.9 m, PNP, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
Wire insulation material
PVC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V
Current consumption
20 mA no-load
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
Product certifications
CE
cULus
UKCA
cULus
UKCA
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S04
Number of units in package 2
160
Package 2 height
30 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.895 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions
Connection and schema
Connection and schema
Wiring diagram
Detection curves
Detection curves

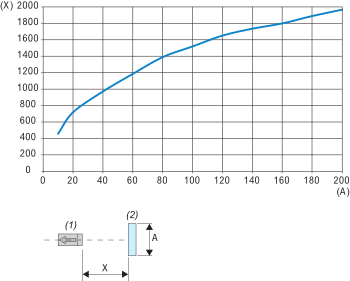

Object size/sensing distance
Detection curves

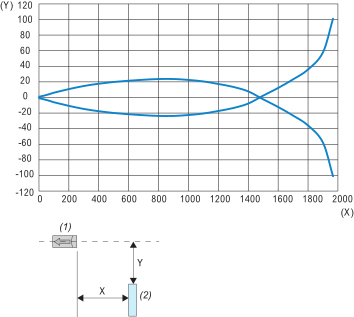

Lateral displacement
Detection curves

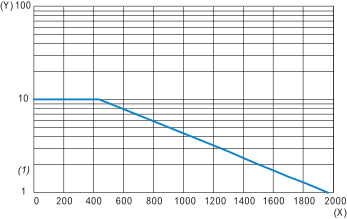

Excess gain
Expand all
Documents & Downloads
Document name
Date
Size
2025-01-02
271517281
2024-02-07
4778347
2024-02-07
4923197
Document name
Date
Size
2021-05-19
1174419
2021-08-16
1153355
2025-01-22
1742650
2025-01-22
744113
Document name
Date
Size
3/25/2021
36136
Document name
Date
Size
2025-05-16
279895
2025-05-19
278938
Document name
Date
Size
2023-03-01
2108602
2023-03-01
2099851
XUM4A.XB. / XUM5A.XB. / XUM6A.XB. Photo-electric sensors - Miniature design, Instruction Sheet (pdf)
2023-03-01
2398005
2023-03-01
2107178
2023-03-01
2100644
2023-03-01
2099097
2023-03-01
2213237
2023-03-01
2858574
Document name
Date
Size
Expand all
Related products & accessories
XUZA50

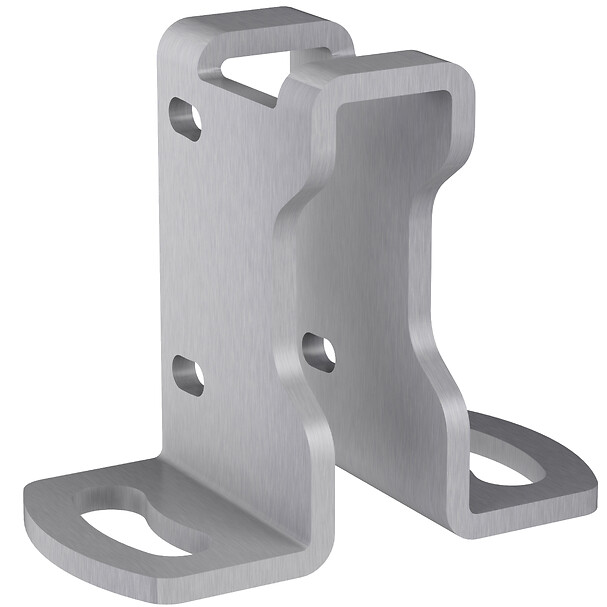

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUM, metal
XUZASM02

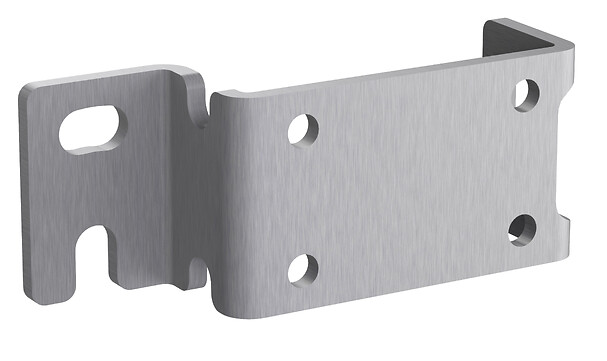

Photoelectric sensors XU, accessory for sensor, XUM, Wrap around horizontal mounting bracket, for pre-cabled sensors, with 2 M3 screws
