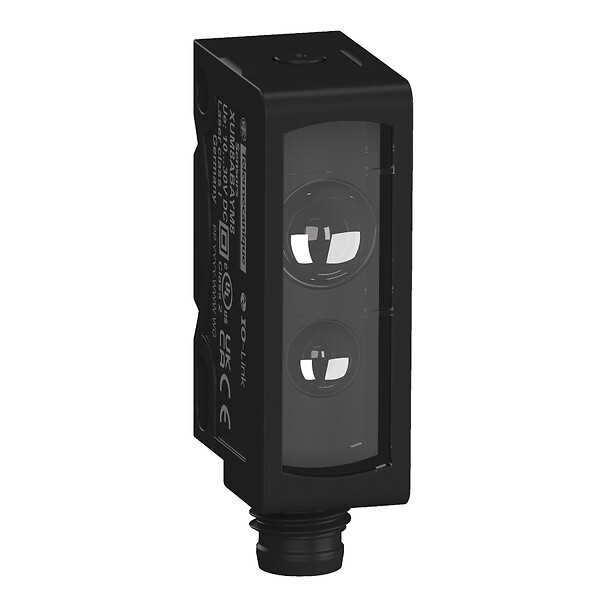

XUM8ABAYM8
Photoelectric sensors XUM8, BGS, Blue light, Sn 200mm, IO-Link, Connector M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
[Sn] nominal sensing distance
200-200 mm diffuse with background suppression
Discrete output type
IOLINK
PNP/NPN autodetect
PNP/NPN autodetect
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Background suppression blue light
Emission
Blue light diffuse with background suppression
Enclosure material
ABS
Lens material
PMMA
Output type
Solid state
Add on output
Without, 100 mA
Status LED
1 LED (green) for power ON, 1 LED (orange) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 30 mA no-load
Delay first up
300 MILLISECOND
Delay response
500 MICROSECOND
Delay recovery
300 MILLISECOND
Setting-up
Sensitivity by IO-Link
sensitivity adjustment with teach mode
sensitivity adjustment with teach mode
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
895 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
