XUM8APCNL2
Photoelectric miniature sensor XUM, BGS, Sn 0.3 m, 12...24 VDC, cable 2 m, PNP, NO/NC
END OF COMMERCIALISATION End of commercialization date : December 31st 2024 End of service date : December 31st 2024
XUM8APCNL2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Material
Plastic
Electrical connection
Cable
Wiring technique
3-wire
Detection system
Diffuse with background suppression
Emission
Red diffuse with background suppression
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
500 Hz
Discrete output type
PNP
Delay response
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Current consumption
35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PC
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
Sensing range
> 0.3...1 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
30 MILLISECOND
Delay recovery
1 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.657 CENTIMETER
Package 1 width
7.694 CENTIMETER
Package 1 length
8.287 CENTIMETER
Package 1 weight
0.06 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.239 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
48
Package 3 height
14 CENTIMETER
Package 3 width
29.3 CENTIMETER
Package 3 length
39.5 CENTIMETER
Package 3 weight
3.161 KILOGRAM
Indivisible sale quantity
1
Expand all
Technical Drawings

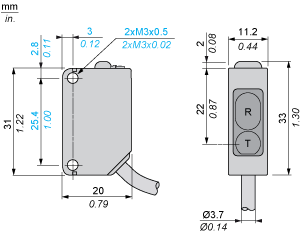

Dimensions
- R : Reception
- T : Transmission

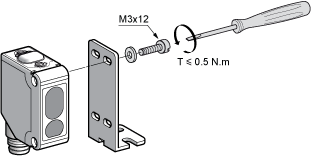

Mounting
Wiring Schemes
PNP Output
- (-) BU : Blue
- (+) BN : Brown
- (OUT) BK : Black
- (MODE) PK : Pink
- Note : This scheme is represented in "background suppression" mode, cabling of pink (PK) wire to 0 V
Detection Curves
Variation of Usable Sensing Distance
Variation of Usable Sensing Distance
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
