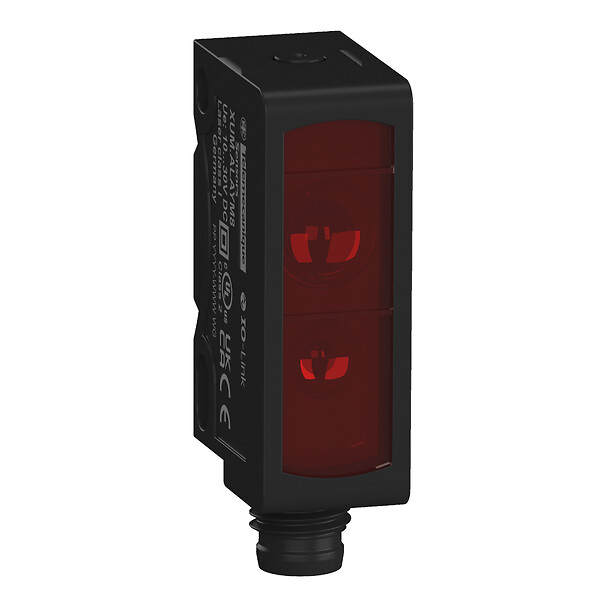

XUM9ALAYM8
Photoelectric sensors XUM9, Reflex, Laser, Sn 13000mm, IO-Link, Connector M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Polarised reflex
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
IOLINK
PNP/NPN autodetect
PNP/NPN autodetect
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Reflex laser
Emission
Red laser reflex
Enclosure material
ABS
Lens material
PMMA
Output type
Solid state
Add on output
Without, 100 mA
Status LED
1 LED (green) for power ON
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 30 mA no-load
Delay first up
300 MILLISECOND
Delay response
125 MICROSECOND
Setting-up
Sensitivity adjustment with teach mode
Delay recovery
300 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
3 CENTIMETER
Package 1 length
6 CENTIMETER
Package 1 weight
0.045 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.75 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
