XUM9APSBM8

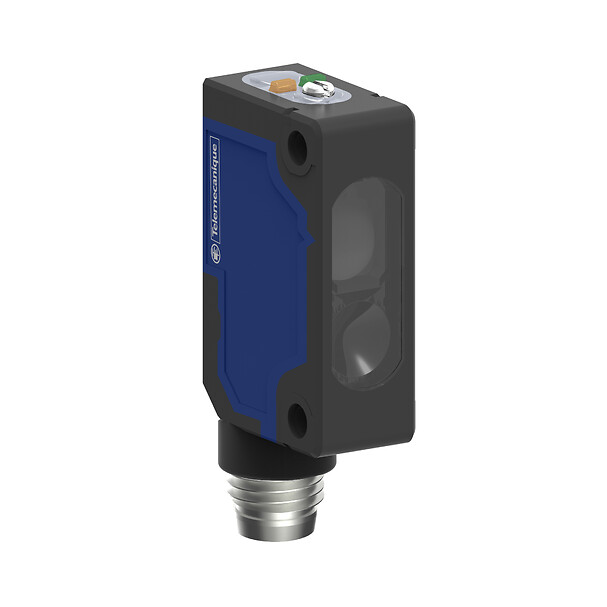

Photoelectric sensors XU, miniature, reflex, Sn=6 m, PNP, connector M8
END OF COMMERCIALISATION End of commercialization date : January 16th 2023 End of service date : January 16th 2023
XUM9APSBM8 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Polarised reflex
Sensing range
0...6 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 50 mA with short-circuit protection
Switching frequency
500 Hz
Maximum voltage drop
<2 V
Current consumption
30 mA no-load
Delay first up
300 MILLISECOND
Delay response
1 MILLISECOND
Setting-up
Sensitivity by potentiometer
Supply voltage limits
10-30 V DC
Vibration resistance
+/-0.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
30 gn for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
17 GRAM
Unit type of package 2
S02
Number of units in package 2
100
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.053 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
