XUMTARAYL2

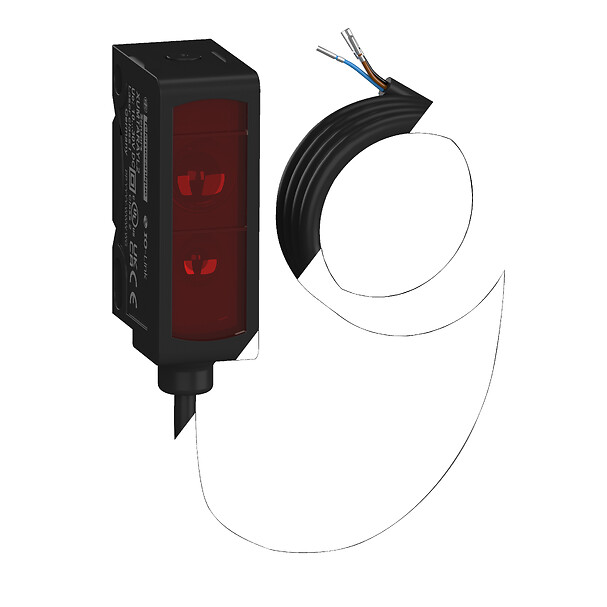

Photoelectric transparent-object sensor XUMT, transparent reflex, transparent, plastic, Sn 2 m, 24 V, cable 2 m, NO/NC, IO-Link

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Sensor name
XUM
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Product specific application
Detection of transparent object
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
ABS
[Sn] nominal sensing distance
2-2 m reflex need reflector XUZC50
Maximum sensing distance
2 m reflex
Wiring technique
4 wires
Detection system
Reflex
Delay response
500 µs
Indivisible sale quantity
1
Sensing range
> 0...2 m
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 30 mA no-load
Emission
Red reflex
Setting-up
Sensitivity by IO-Link
sensitivity adjustment with teach mode
Output type
Solid state
Type of output signal
Discrete
Add on output
Without, 100 mA
Discrete output type
IOLINK
PNP/NPN autodetect
Discrete output function
1 NO or 1 NC programmable
Status LED
1 LED (green) for power ON, 1 LED (orange) for output state
Delay first up
300 ms
Delay recovery
300 ms
Height
34 mm
Width
12 mm
Length
20 mm
Product weight
0.045 kg
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Ambient air temperature for operation
-25…60 °C
Ambient air temperature for operation
-25-60 °C
Ambient air temperature for storage
-20…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
DE (Germany)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916109175
Package 1 height
5 cm
Package 1 width
7 cm
Package 1 length
14.2 cm
Package 1 weight
0.056 kg
Unit type of package 2
S02
Number of units in package 2
20
New Package 2 GTIN 14
13666916109172
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
1.895 kg
New Package 3 GTIN 14
23666916109179
