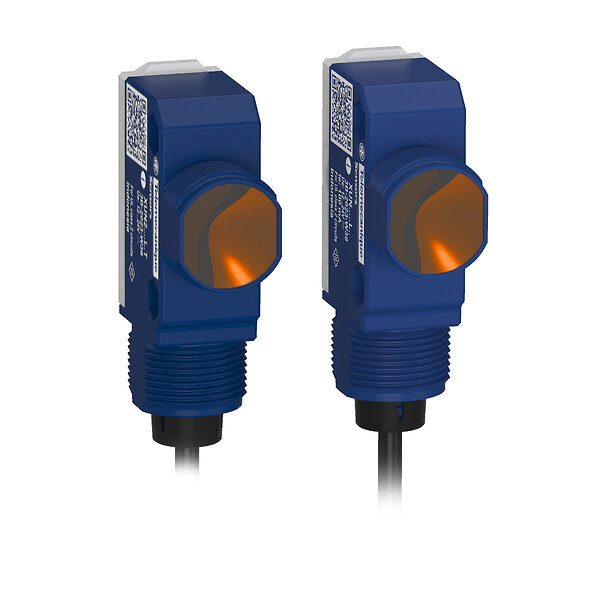

XUN2APXNL2

Telemecanique Photoelectric sensors XU

XUN

General purpose single mode

PC/PBT

Photo-electric sensor

Compact 32 x 52

Cable

Plastic

4 wires

Thru beam

Red LED thru beam

1 NO or 1 NC programmable

12...24 V DC with reverse polarity protection

Discrete

DC

1000 Hz

PNP

0.5 MILLISECOND

CE
cULus
RoHS
UKCA

Sensitivity by potentiometer

< 20 mA no load

Discrete

<= 100 mA (overload and short-circuit protection)

PMMA

1 LED (green) for transmitter/supply on, 1 LED (green) for receiver/supply on/stability, 1 LED (orange) for receiver/output

0...30 m

<2 V (closed state)no-load

100 MILLISECOND

0.5 MILLISECOND

30 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27

IP67 conforming to IEC 60529, IP65 conforming to IEC 60529

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6

PCE

1

1.8 CENTIMETER

1.6 CENTIMETER

4.4 CENTIMETER

0.057 KILOGRAM

S02

28

15 CENTIMETER

30 CENTIMETER

40 CENTIMETER

2.9 KILOGRAM

P06

448

75 CENTIMETER

60 CENTIMETER

80 CENTIMETER

32.06 KILOGRAM

1
