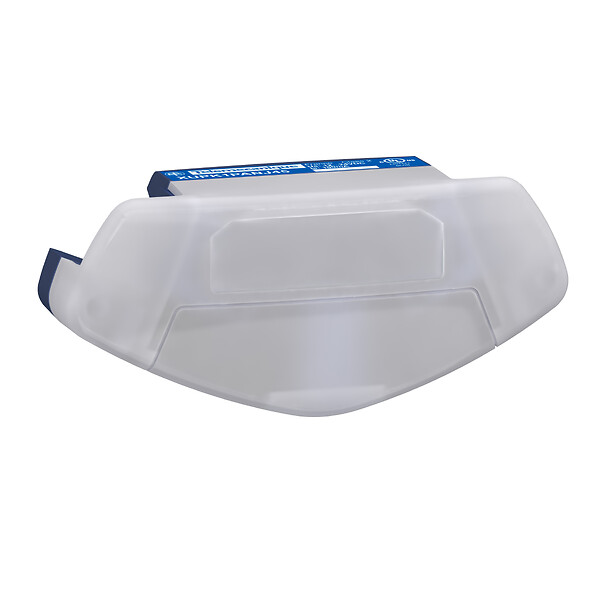

XUPK1PANJ45
Photoelectric sensors XU, Picking Sensor green/red PNP NO connector RJ45
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUPK
Series name
Application
Electronic sensor type
Photo-electric sensor
Material
PC (polycarbonate)
Product destination
PLC
Overvoltage category
II
Detection system
Diffuse
reflex
reflex
Emission
Infrared
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
-
[Us] rated supply voltage
-
Setting-up
Without sensitivity adjustment
Current consumption
<= 50 mA no-load
Operating mode
Point-to-point
Output type
Solid state PNP (NO)
Topology
-
Switching capacity in mA
100 mA
Hysteresis
15 PERCENTAGE
Discrete input voltage
12...24 V
Maximum voltage drop
-
Status LED
2 LED color: green for parts to be taken, 1 LED color: red for wrong taken
Delay response
200 ms
Maximum delay recovery
-
Environmental characteristic
EMC conforming to IEC 60947-5-2
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
0.063 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.702 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

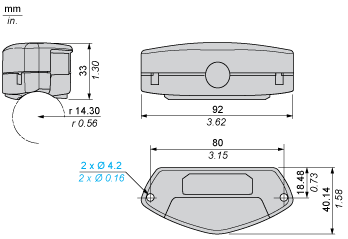

Dimensions

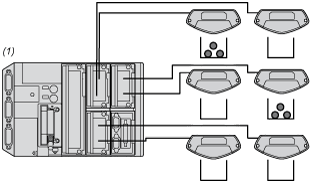

Direct Point to Point Connection to PLC
- (1) PLC (Programmable logic controller)
Direct Point to Point Connection to PLC
Connection for Setup Mode
- (1) PLC (Programmable logic controller)
Direct Point to Point Connection to PLC
Connection for Operating Mode
- (1) PLC (Programmable logic controller)

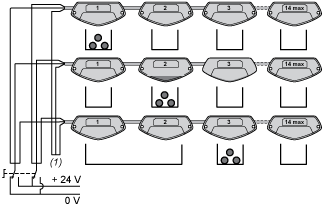

Single Chained Mode: Daisy Chain of Picking Sensors
- (1) Pin 2 or pin 7 wire connected as a network (see connection here-under).
Single Chained Mode: Daisy Chain of Picking Sensors
Connection for Teaching Mode
- (1) Pin 2 or pin 7 wire connected as a network (see connection here-under).
Single Chained Mode: Daisy Chain of Picking Sensors
Connection for Operating Mode
- (1) Pin 2 or pin 7 wire connected as a network (see connection here-under).

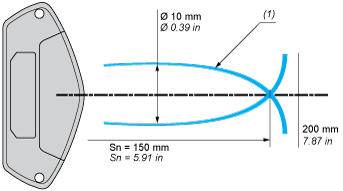

Detection Curves
Detection in a 10 mm/0.39 in. Tubular Beam
- (1) Detection zone
- Sn : Sensing distance
Mounting
Mounting on a Flat Pannel (Fixation Holes M4)
- (1) Maximum tightening torque: 0,8 Nm / 7.08 Ib-in.
Mounting
Mounting on Tubes (with Plastic Clamps)
- (1) Maximum tightening torque: 0,8 Nm / 7.08 Ib-in.
