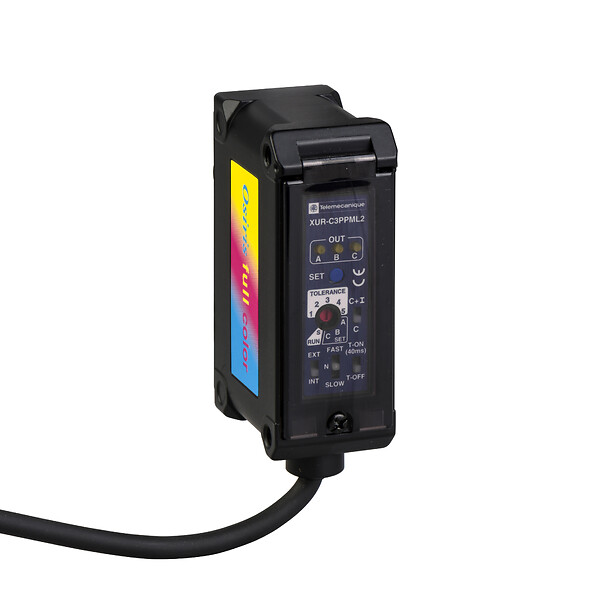

XURC3PPML2
Photoelectric sensors XU, XUR, diffuse, color, Sn 60 mm, 12...24 VDC, cable 2 m
End of commercialisation End of commercialization date : End of service date :
XURC3PPML2 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUR
Sensor design
Compact
Detection system
Diffuse
Material
Metal
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
PNP
Discrete output function
1 NO
Emission
-
Electrical connection
Cable
Product specific application
Colour
Enclosure material
Aluminium
Lens material
Glass
Output type
Solid state
Cover material
Polyacrylate
Cable composition
7 x 0.2 mm²
Status LED
-
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 150 mA no-load
Time delay range
40 ms on failing edge programmable by switch delay
Maximum voltage drop
<1.5 V (closed state)
Switching time
-
Setting-up
Operating mode
sensitivity adjustment with teach mode
tolerance level
sensitivity adjustment with teach mode
tolerance level
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz)on the 3 axes during 2 hours conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529
Shock resistance
50 gn for 5 shocks on each axis conforming to IEC 60068-2-27
Package 1 height
6.5 CENTIMETER
Package 1 width
7.8 CENTIMETER
Package 1 length
13.3 CENTIMETER
Package 1 weight
290 GRAM
Unit type of package 2
S02
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Unit type of package 1
PCE
Package 2 length
40 CENTIMETER
Number of units in package 1
1
Package 2 weight
3.352 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
