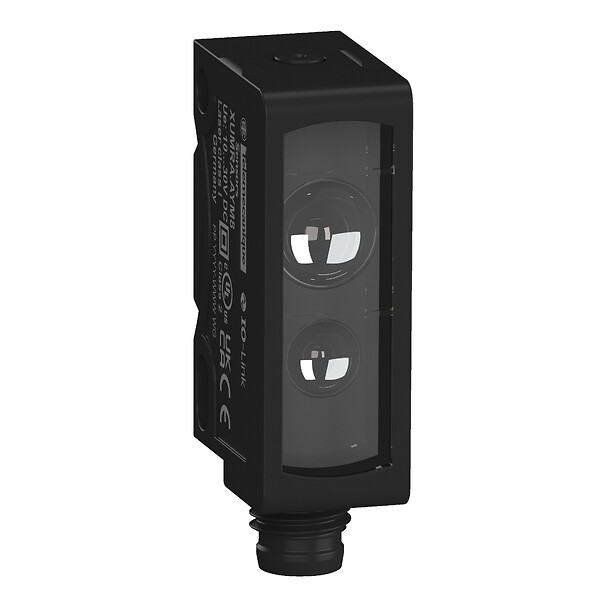

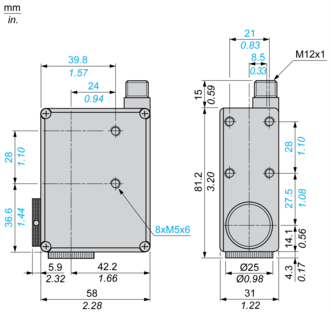

Technical Drawings
Connector Scheme
1/Brown : 10...30 VDC
2/White : Adjustment input
3/Blue : 0 V
4/Black : Output
PNP or NPN Programmable
R = 2.2 kΩ

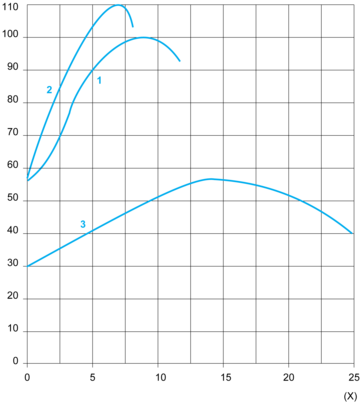

Detection Curve
(x) Distance (mm)
1 : XURK●●●●●●●●
2 : With XURZ01
3 : With XURZ02
Detection Zone and Spot Size (mm)
a | b | c | |
---|---|---|---|
9 | 9 | 1.5 | |
With XURZ01 | 18 | 7 | 2 |
With XURZ02 | 7 | 4 | 1 |
Vertical Inclination
An angle of 5 to 10° from vertical is recommended for reflective or transparent surfaces Maximum vertical inclination: 20°
