XUSZAST4PPS

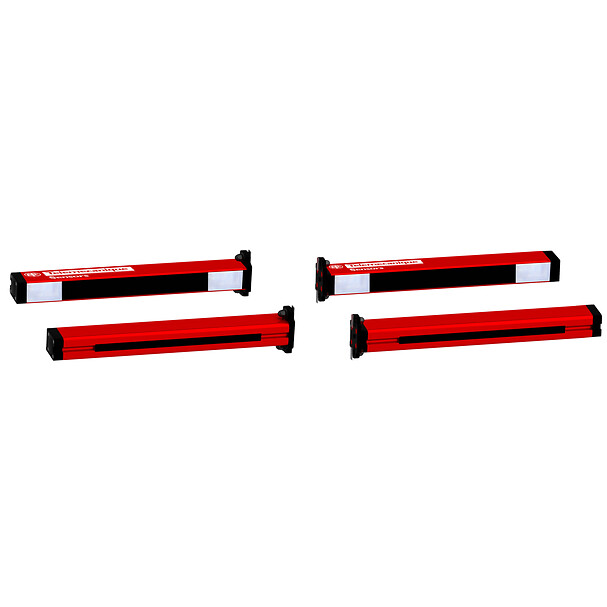

Single beam prebuilt muting arms, Telemecanique Safety light curtains XUSL, light curtain arm T 4parallel high speed conveyor
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Single-beam prebuilt muting arms
Device short name
XUSZAS
Output type
4 discrete solid-state PNP (NO)
Product compatibility
XUSL4M
Detection system
Polarised reflex
Product specific application
Conveyor system entry/exit direction, conveyor system high speed
Specific application of photoelectric detector
Detection of opaque parts
sensing range
> 75 cm pallet length, > 75 cm space between package
Response time
< 100 ms
Kit composition
reflex system photo-electric sensor, quick start guide
Emission
IR LED
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Via connector
Current consumption
42 mA
Output voltage
24 V
Output circuit type
DC
Voltage drop
<0.5 V
Switching capacity in mA
100 mA
Local signalling
4 yellow LED receiver
Housing colour
Red RAL 3000
Directives
89/336/EEC - electromagnetic compatibility
98/37/EEC - machinery
98/37/EEC - machinery
Product certifications
CE
Safety reliability data
PFHd = 2.73E-7 1/h
IP degree of protection
IP65
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.5 CENTIMETER
Package 1 width
20 CENTIMETER
Package 1 length
120 CENTIMETER
Package 1 weight
4.91 KILOGRAM
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
14.5 CENTIMETER
Package 2 width
20 CENTIMETER
Package 2 length
120 CENTIMETER
Package 2 weight
4.91 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) : Transmitter
- (2) : Receiver
