XUSZBSC4
Safety light curtain bracket XUSZBSC, Curved bracket, 4 fixing brackets set
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Kit composition
4 x curved bracket(s)
ETIM classification
ETIM 9 - EC002594 - Accessories/spare parts for position switches
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Accessory / separate part type
Curved fixing bracket
Range compatibility
TE SAFETY LGT CRTNS XUSL
Product compatibility
XUSL2E
XUSL4E
XUSL4E
Indivisible sale quantity
1
Product weight
0.2 kg
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
IT (Italy)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916061824
Package 1 height
6.6 cm
Package 1 width
10 cm
Package 1 length
17 cm
Package 1 weight
0.2 kg
Unit type of package 2
S02
Number of units in package 2
10
New Package 2 GTIN 14
13666916061821
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.275 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916061828
Package 3 height
17 cm
Package 3 width
7 cm
Package 3 length
10 cm
Package 3 weight
0.255 kg
Expand all
Technical Drawings

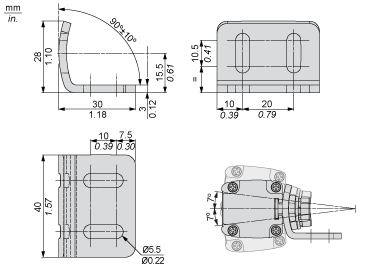

Dimensions

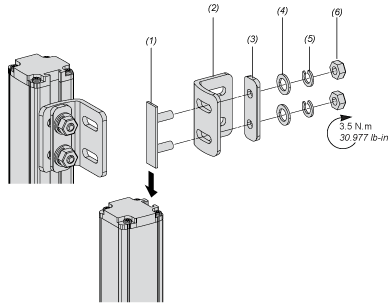

Mounting and Clearance
- (1) Insert
- (2) Curve bracket
- (3) Plate
- (4) Washer
- (5) Spring washer
- (6) Nut
