XUSZMD136
Safety light curtain mirror XUSZMD, Mirrors for light curtains with fastening systems 1450 mm, Hp = 1360 mm
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Adaptation accessories
Accessory / separate part type
90° mirror adaptor
Product compatibility
XUSL.E…136
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Material
Glass
Sensing distance reduction coefficient
0.85 Sn
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14 CENTIMETER
Package 1 width
19.5 CENTIMETER
Package 1 length
151.5 CENTIMETER
Package 1 weight
6.8 KILOGRAM
Unit type of package 2
P2M
Number of units in package 2
24
Package 2 height
14 CENTIMETER
Package 2 width
19.5 CENTIMETER
Package 2 length
151.5 CENTIMETER
Package 2 weight
6.8 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

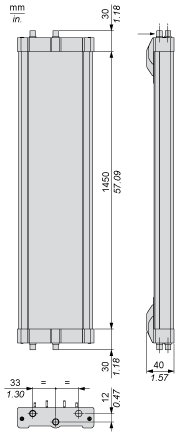

Dimensions
