XUSZMD151
Safety light curtain mirror XUSZMD, Mirrors for light curtains with fastening systems 1600 mm, Hp = 1510 mm
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
ETIM classification
ETIM 9 - EC002467 - Reflector for photoelectric sensor
Material
Glass
Accessory / separate part category
Adaptation accessories
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Accessory / separate part type
90° mirror adaptor
Height protected
1510 mm
Product compatibility
XUSL.E…151
Indivisible sale quantity
1
Sensing distance reduction coefficient
0.85 Sn
Height
1600 mm
Product weight
5 kg
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
IT (Italy)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916061466
Package 1 height
14 cm
Package 1 width
20 cm
Package 1 length
167 cm
Package 1 weight
5 kg
Unit type of package 2
CAR
Number of units in package 2
1
New Package 2 GTIN 14
13666916061463
Package 2 height
14 cm
Package 2 width
167 cm
Package 2 length
20 cm
Package 2 weight
7.3 kg
New Package 3 GTIN 14
23666916061460
Expand all
Technical Drawings

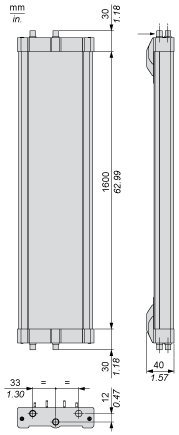

Dimensions
