XUSZMF172

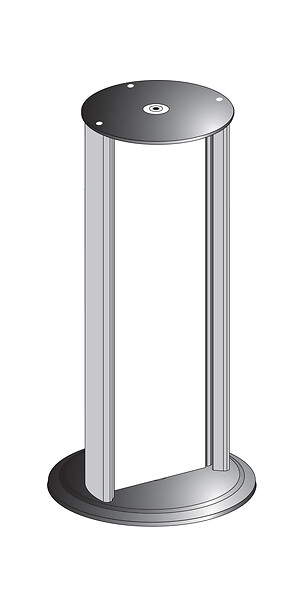

Safety light curtain column with mirror XUSZMF, 1700 mm, Hp = 1360 mm
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
ETIM classification
ETIM 9 - EC002594 - Accessories/spare parts for position switches
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Accessory / separate part type
Fixing column
Height protected
1360 mm
Product compatibility
XUSL.E…106 to XUSL.E…136
Indivisible sale quantity
1
Height
1700 mm
Product weight
8 kg
Ambient air temperature for operation
-30…55 °C
Ambient air temperature for storage
-30…70 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
IT (Italy)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916061756
Package 1 height
14 cm
Package 1 width
20 cm
Package 1 length
180 cm
Package 1 weight
8 kg
Unit type of package 2
P2M
Number of units in package 2
12
New Package 2 GTIN 14
13666916061753
Package 2 height
14 cm
Package 2 width
20 cm
Package 2 length
180 cm
Package 2 weight
9.82 kg
New Package 3 GTIN 14
23666916061750
