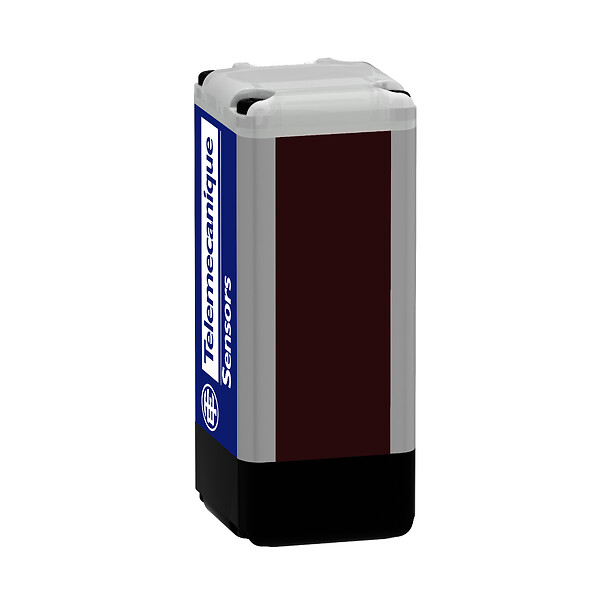

XUSZPM5AXPL09
Multi-beam SLC muting sensors, Multibeams for arm A coding
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Multi-beam muting sensors
Device short name
XUSZPM5
Kit composition
transmitter + receiver, quick start guide
ETIM classification
ETIM 9 - EC002549 - Light curtain
Housing colour
Grey
Safety reliability data
PFHd = 2.73E-7 1/h
Number of beams
5
[Sn] nominal sensing distance
0-3.5 m
Detection system
Through beam
Distance between axis
10 mm
Product certifications
CE
Directives
89/336/EEC - electromagnetic compatibility
98/37/EEC - machinery
98/37/EEC - machinery
Product compatibility
XUSL4M
Indivisible sale quantity
1
[Us] rated supply voltage
24 V DC +/- 20 %
Supply
Via external supply
Switching capacity in mA
100 mA
Voltage drop
<0.5 V
Current consumption
42 mA no load
Response time
< 100 ms
Emission
IR LED 940 nm
Local signalling
1 green, orange and red LED receiver
Output type
1 discrete solid-state PNP (NO)
Output circuit type
DC
Output voltage
24 V
IP degree of protection
IP65
Ambient air temperature for operation
-30…55 °C
Ambient air temperature for storage
-30…70 °C
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Relative humidity
0-95 % without condensation
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
IT (Italy)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916026922
Package 1 height
17 cm
Package 1 width
6.5 cm
Package 1 length
10 cm
Package 1 weight
0.32 kg
New Package 2 GTIN 14
13666916026929
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
3.289 kg
New Package 3 GTIN 14
23666916026926
Expand all
Technical Drawings

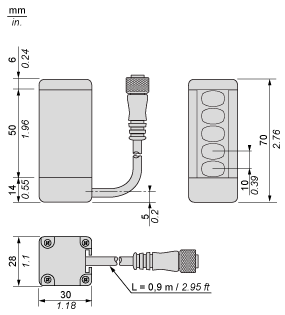

Dimensions
