XUT7ABPXL2

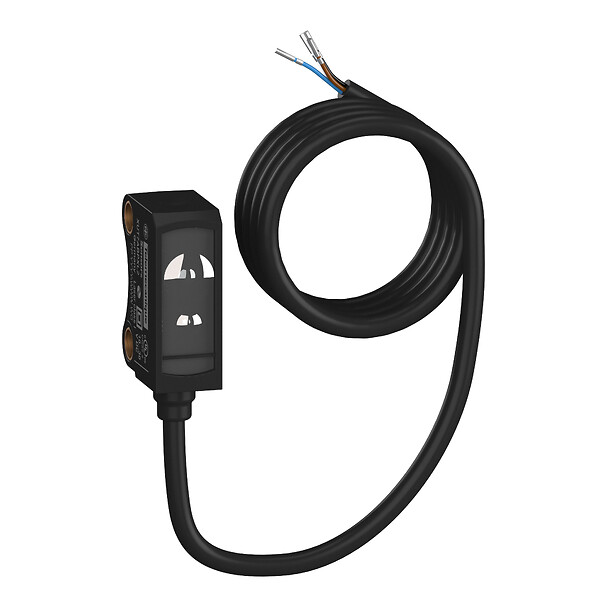

Photoelectric miniature sensor XUT, fixed BGS, blue light, plastic, Sn 50 mm, 24 V, cable 2 m, PNP, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUT
Series name
Application packaging
Product specific application
Background suppression fixed blue light
Enclosure material
PUR
Electronic sensor type
Photo-electric sensor
Sensor design
Sub-miniature
Electrical connection
Cable
Material
Plastic
Detection system
Diffuse with background suppression
Emission
Blue light diffuse with background suppression
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
500 MICROSECOND
Setting-up
Without sensitivity adjustment
Current consumption
<= 20 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
Without, 100 mA
Status LED
1 LED (green) for power ON, 1 LED (orange) for output state
Sensing range
2…50 mm
Delay first up
300 MILLISECOND
Delay recovery
300 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.1 CENTIMETER
Package 1 width
3.1 CENTIMETER
Package 1 length
6.1 CENTIMETER
Package 1 weight
0.039 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.015 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
