XUT8ALAYL2

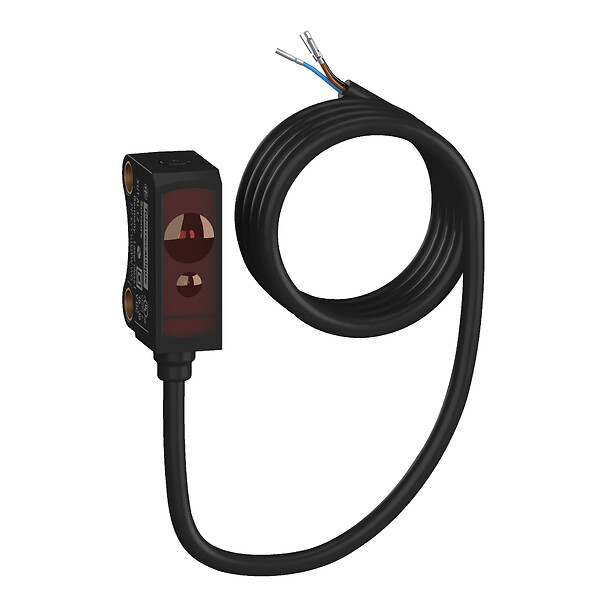

Photoelectric sensors XUT8, BGS, Laser, Sn 70mm, IO-Link, Cable 2m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUT
Sensor design
Sub-miniature
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
IOLINK
PNP/NPN autodetect
PNP/NPN autodetect
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Background suppression laser
Emission
Red laser diffuse with background suppression
Enclosure material
PUR
Lens material
PMMA
Output type
Solid state
Output function governance
NO/NC programmable
Add on output
Without, 50 mA
Wire insulation material
PVC
Status LED
1 LED (green) for power ON
Add on input
Remote teaching
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 50 mA (overload and short-circuit protection)
Switching frequency
1000 Hz
Current consumption
<= 12 mA no-load
Delay first up
300 MILLISECOND
Delay response
500 MICROSECOND
Setting-up
Sensitivity adjustment with teach mode
Delay recovery
300 MILLISECOND
Product certifications
CE
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.405 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
