XUVF30M8

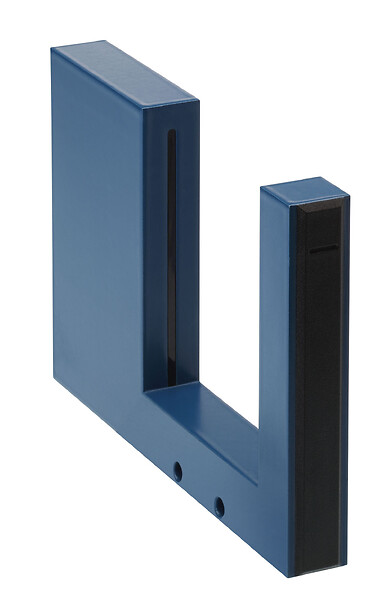

Photoelectric sensors XU, XUV, frame, 30X30mm, 12...24 VDC, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Frame
Detection system
Thru beam
Emission
-
Material
Metal
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP or NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Dynamic detection of passage of objects
Enclosure material
Painted aluminium
Lens material
Polycarbonate
Type of output signal
Discrete
Output type
Solid state
Add on output
With alarm output
[Us] rated supply voltage
24 V DC with reverse polarity protection
Status LED
-
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Switching frequency
500 Hz
Current consumption
<= 120 mA no-load
Time delay range
0...5 s off-delay delay
Delay first up
100 MILLISECOND
Maximum delay recovery
-
Setting-up
Sensitivity adjustment with potentiometer
Vibration resistance
25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.8 CENTIMETER
Package 1 width
11 CENTIMETER
Package 1 length
15.8 CENTIMETER
Package 1 weight
0.142 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.295 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Transmitting face
- (2) Reception face
Wiring Schemes (4-Wire DC)
PNP Output
Wiring Schemes (4-Wire DC)
NPN Output
Wiring Schemes (4-Wire DC)
Connector Scheme
- 1 : +
- 2 : Alarm
- 3 : -
- 4 : Output
