Photoelectric fork sensor XUV, opening 30x30 mm, thru-beam, Sn 30 mm, 12...24 VDC, cable 2 m, handling
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XUV
Electronic sensor type
Photo-electric sensor
Sensor design
Fork
Product specific application
Detection of flags in lifts/transtockers
ETIM classification
ETIM 9 - EC002720 - Fork light barrier
Material
Plastic
Lens material
PMMA
Enclosure material
ABS/PC
[Sn] nominal sensing distance
30-30 mm
Wiring technique
3-wire
Detection system
Thru beam
Delay response
0.5 ms
Indivisible sale quantity
1
Electrical connection
Cable
Cable length
2 m
Cable composition
3 x 0.34 mm²
Supply voltage limits
19-38 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 150 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 20 mA no-load
Emission
-
Cable outer diameter
5 mm
Setting-up
Without sensitivity adjustment
Status LED
-
Output type
Solid state
Type of output signal
Discrete
Discrete output type
NPN
Discrete output function
1 NO
Switching frequency
< 1 kHz
Delay first up
30 ms
Delay recovery
0.5 ms
Height
59 mm
Width
14 mm
Depth
68 mm
Product weight
0.13 kg
IP degree of protection
IP54 conforming to IEC 60529
Ambient air temperature for storage
-20…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-42 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032084
Package 1 height
2.5 cm
Package 1 width
15 cm
Package 1 length
15 cm
Package 1 weight
0.102 kg
Unit type of package 2
S02
Number of units in package 2
25
New Package 2 GTIN 14
13666916032081
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.005 kg
Unit type of package 3
BAG
Number of units in package 3
1
New Package 3 GTIN 14
23666916032088
Package 3 height
2.5 cm
Package 3 width
15 cm
Package 3 length
15 cm
Package 3 weight
0.102 kg
Expand all
Technical Drawings

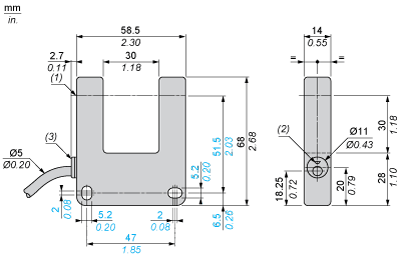

Dimensions
- (1) Optical axis
- (2) Red LED
- (3) Diffuser
Wiring Schemes (3-Wire DC)
NO Function
- BN : Brown
- BK : Black
- BU : Blue
Detection Curve
