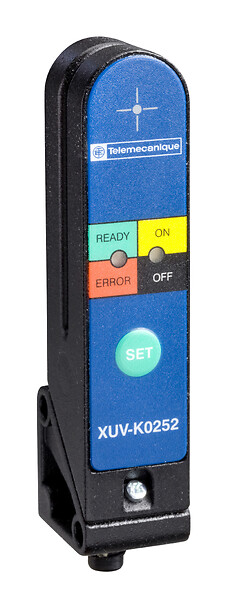

XUVK0252S
Photoelectric sensors XU, thru beam, Sn 2 mm, NO or NC, M8 connector
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Fork
Detection system
Thru beam
Emission
Infrared
Type of setting
Without
Passage width
2 mm
Passage depth
50 mm
Material
Metal
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP and NPN
Discrete output function
2 NO/NC programmable
Electrical connection
1 male connector M8 adjustable through 90°, 4 pins
Product specific application
Detection of labels
[Sn] nominal sensing distance
2 mm
Setting-up
Teach mode
Enclosure material
Zinc alloy
Lens material
Glass
Type of output signal
Discrete
Output type
Solid state
Status LED
Sensor ready: 1 LED (green)
Read error: 1 LED (red)
Output state: 1 LED (yellow)
Read error: 1 LED (red)
Output state: 1 LED (yellow)
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply voltage limits
10…30 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
<= 25 kHz
Maximum voltage drop
<1.5 V (closed state)
Output clamping resistor
10 kOhm
Current consumption
<= 50 mA no-load
Maximum delay first up
30 ms
Maximum delay response
0.1 ms
Maximum delay recovery
0.1 ms
Depth
90 mm
Height
20 mm
Width
20 mm
Net weight
0.085 kg
Product certifications
CE
Ambient air temperature for operation
0…55 °C
Ambient air temperature for storage
-20…70 °C
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.2 cm
Package 1 Width
8.0 cm
Package 1 Length
3.6 cm
Package 1 Weight
130.0 g
Unit Type of Package 2
S02
Number of Units in Package 2
45
Package 2 Height
15.0 cm
Package 2 Width
30.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
6.344 kg
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

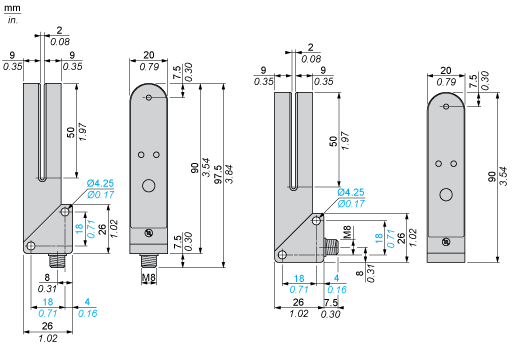

Dimensions
M8 Connector Adjustable Through 90°
Connector Scheme
3-wire, PNP and NPN
- 1 : +
- 2 : NPN Output
- 3 : -
- 4 : PNP Output
