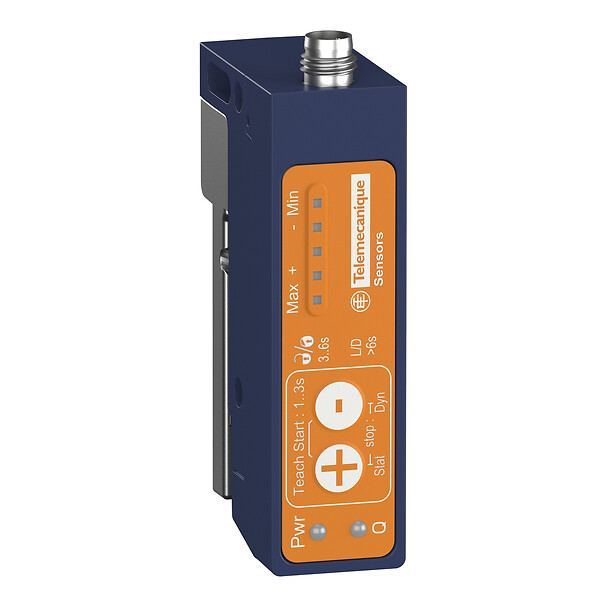

XUVU04M3BM8
Ultrasonic Fork 37mm SN 3mm Push/Pull Connector M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
LABELLING DETECTION
LABELLING DETECTION
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Fork
Detection system
Through beam
Emission
Ultrasonic
Type of setting
Teach buttons or IO-Link
Material
Valox
zamak
zamak
Supply circuit type
DC
Discrete output type
Push-pull
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 connector M8, 4 pins
Product specific application
Detection of labels
detection of transparent labels
detection on a labelling machine
detection of transparent labels
detection on a labelling machine
Enclosure material
Valox
zamak
zamak
Setting-up
Sensitivity by IO-Link
sensitivity adjustment with teach mode
sensitivity adjustment with teach mode
Accuracy
at 240m/min (for 2 mm label length, 2 mm gap)m/mn
Type of output signal
Discrete
Label length
2 MILLIMETER
Output type
Discrete
Distance between labels
1 MILLIMETER
[Us] rated supply voltage
-
Passing speed of object
4 METER_PER_SECOND
Status LED
-
Current consumption
0.05 mA
Switching capacity in mA
<= 100 mA
Delay first up
300 MILLISECOND
Delay response
0.44 MILLISECOND
IP degree of protection
IP65 conforming to EN/IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
6 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
0.095 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.325 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
