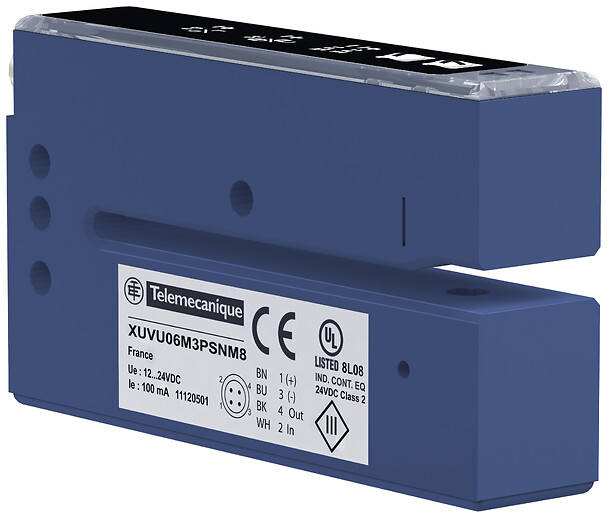

XUVU06M3PSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP NO/NC connect M8
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Fork
Detection system
Thru beam
Emission
Ultrasonic
Type of setting
With
Material
Metal
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Detection of transparent labels
Enclosure material
Zinc alloy
Setting-up
Numeric potentiometer
Lens material
PC
Accuracy
+/- 0.20 mm at 120 m/min
Type of output signal
Discrete
Label length
2 MILLIMETER
Output type
Solid state
Distance between labels
2 MILLIMETER
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Passing speed of object
180 METER_PER_MINUTE
Status LED
Output state: 1 LED (yellow), adjustment mode and keypad locking: 1 LED (red)
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
-
Delay first up
30 MILLISECOND
Delay response
0.3 MILLISECOND
IP degree of protection
IP65 conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.616 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

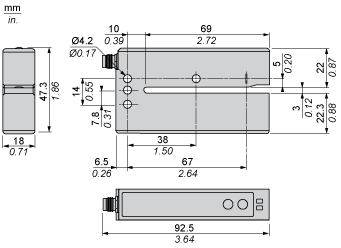

Dimensions
Wiring Schemes
Connector
- 1 : BN: Brown
- 2 : WH: White (remote teaching)
- 3 : BU: Blue
- 4 : BK: Black)
Wiring Schemes
PNP Function
- 1 : BN: Brown
- 2 : WH: White (remote teaching)
- 3 : BU: Blue
- 4 : BK: Black)
- (1) Remote teaching
