XUX8AKSAM12
Photoelectric sensor XUX, BGS, Sn 2 m, 12...24 VDC, M12, PNP/NPN, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Sensor name
XUX
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 92 x 71
Product specific application
Long sensing distance with high accuracy
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Material
Plastic
Lens material
PMMA
Enclosure material
PC
[Sn] nominal sensing distance
2-2 m
Wiring technique
3-wire
Detection system
Diffuse with background suppression
Delay response
3.5 ms
Indivisible sale quantity
1
Sensing range
> 1...5 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-36 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Emission
Infrared
Status LED
-
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP or NPN
Discrete output function
1 NO or 1 NC programmable
Switching frequency
150 Hz
Delay first up
200 ms
Delay recovery
2.5 ms
Product weight
0.2 kg
IP degree of protection
IP30 conforming to IEC 60529 (with cover open), IP65 conforming to IEC 60529 (double insulation), IP67 conforming to IEC 60529 (double insulation)
Ambient air temperature for storage
-40…70 °C
Shock resistance
10 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032763
Package 1 height
4.2 cm
Package 1 width
9.4 cm
Package 1 length
13.2 cm
Package 1 weight
0.192 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916032760
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
4.724 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916032767
Package 3 height
13.2 cm
Package 3 width
4.2 cm
Package 3 length
9.5 cm
Package 3 weight
0.197 kg
Expand all
Technical Drawings
Dimensions
- (1) Elongated hole Ø 5.5 x 7
- (2) Elongated hole Ø 5.5 x 9
- (3) Ø 5.5 hole
Mounting and Clearance
Possible Orientation of Elbowed Connector (Rear View)
Wiring Schemes
M12 Connector
Wiring Schemes
Detection Curves
Variation of Usable Sensing Distance Su
Variation of Usable Sensing Distance Su
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
Detection Curves

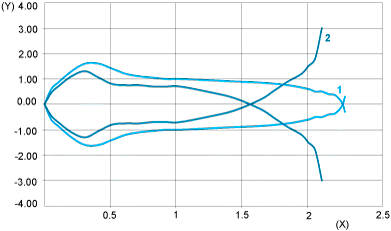

Detection Curves
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- (Y) Detection lobe (cm)
- (X) Object distance (m)
Detection Curves

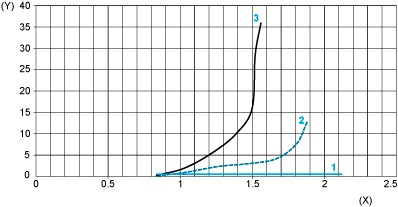

Relative Difference in Sensing Distances According to Object Colour
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- (Y) Detection lobe (cm)
- (X) Object distance (m)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
- (Y) Relative error (%)
- (X) Object distance (m)
