XUY250NC2H03M8
Photoelectric sensors XU, Roller Sensor 250 mm N2, P108 IP50 Hexa 11,2 Cable 0.3 m,M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUY
Series name
Application
Product specific application
Conveyor system
Enclosure material
Aluminium
Electronic sensor type
Photo-electric sensor
Sensor design
Roller sensor
Electrical connection
1 remote male connector M8, 4 pins
Material
Metal
Wiring technique
3-wire
Detection system
Diffuse
Emission
-
Discrete output function
1 NO or 1 NC programmable
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
500 Hz
Discrete output type
PNP or NPN
Product certifications
CCSAus
CE
CE
[Us] rated supply voltage
-
Cover material
PVC
Current consumption
< 35 mA no-load
Output type
Solid state
Switching capacity in mA
100 mA (overload and short-circuit protection)
Lens material
Polycarbonate
Sensing range
> 0...0.1 m
Voltage drop
<2 V at 100 mA (closed state)
Status LED
1 LED color: yellow for output signal, 1 LED color: yellow for output signal, 1 LED color: yellow for output signal, 1 LED color: yellow for output signal
Delay response
1 ms
IP degree of protection
IP50 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
63 CENTIMETER
Package 1 weight
0.5 KILOGRAM
Unit type of package 2
CAR
Number of units in package 2
1
Package 2 height
9 CENTIMETER
Package 2 width
63 CENTIMETER
Package 2 length
9 CENTIMETER
Package 2 weight
0.5 KILOGRAM
Indivisible sale quantity
5
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

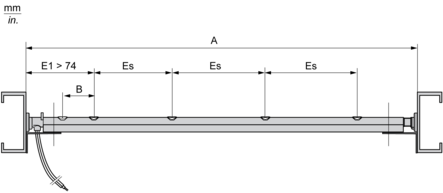

Dimensions
Mounting

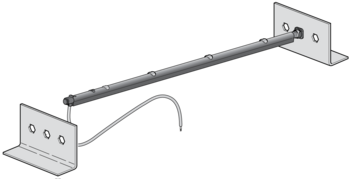

Mounting on the Sides Hexagonal Supports (2 of Each Support are Supplied with the Sensor)
Mounting

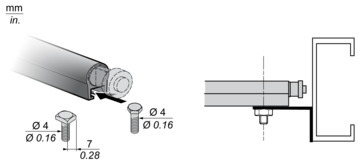

Mounting Underneath (Brackets, Screws and Nuts not Supplied)
Mounting

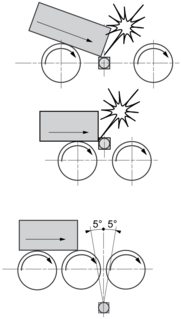

Mounting Precautions
Mounting Precautions
Wiring Schemes
Wiring Schemes
M8 Connector
Wiring Schemes
PNP, NO Output
Wiring Schemes
PNP, NC Output
Wiring Schemes
NPN, NC Output
Wiring Schemes
NPN, NO Output

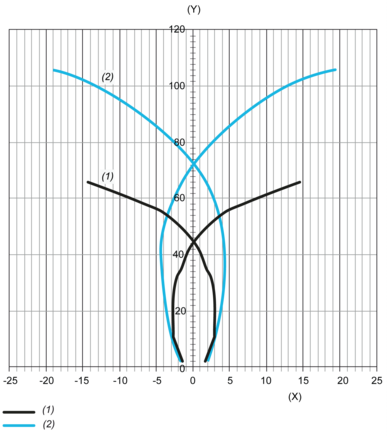

Detection Curves
Conveyor Axis - Load Running Direction

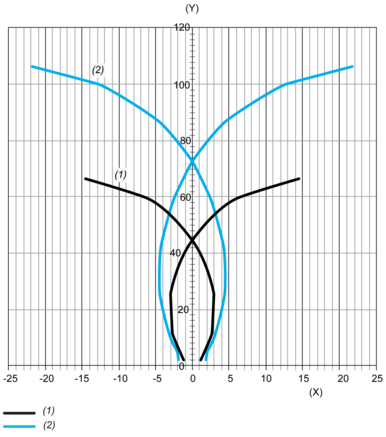

Detection Curves
Roller Axis - Direction at Right-angles to Load Running
