XUYAFLCO966S

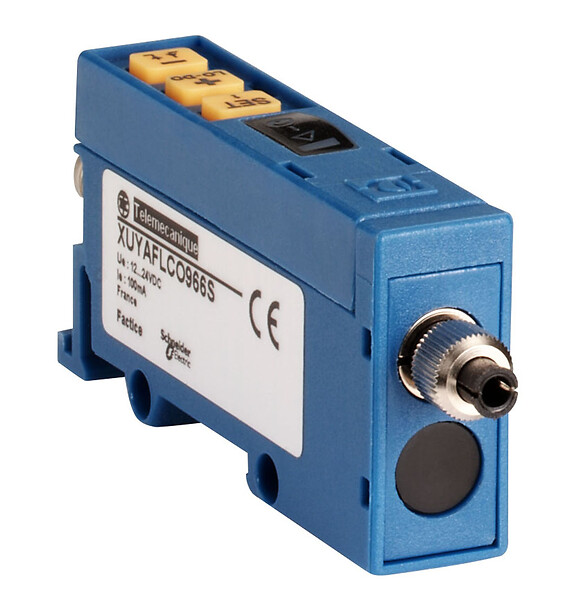

Photoelectric fiber amplifier XUY, plastic, NPN, light detection, 12...24 VDC, M8

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Fiber design
Product specific application
Testing car headlights on production line
verifying operation of indicator lights on electrical appliances
ETIM classification
ETIM 9 - EC002651 - Optical fibre sensor/optical fibre amplifier
Material
Plastic
Enclosure material
Polycarbonate
[Sn] nominal sensing distance
0-0 mm depending on plastic fibres diameter 2.2 mm used
Wiring technique
4-wire
Detection system
Diffuse
Product certifications
CE
Range compatibility
TE PHOTOELEC SSRS XU
Indivisible sale quantity
1
Electrical connection
1 male connector M8, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Current consumption
< 40 mA
Setting-up
With sensitivity adjustment
Status LED
Output signal: 1 LED (green), limit of detection: 1 LED (red), time delay active: 1 LED (red)
Output type
Solid state
Type of output signal
Discrete
Discrete output function
1 NO or 1 NC programmable
Time delay range
0...5 s adjustment increments delay, 0...5 s adjustment increments delay
Switching frequency
< 5 Hz
Delay response
100 ms
Maximum delay recovery
-
Product weight
0.054 kg
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for storage
-20…80 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916029046
Package 1 height
3.5 cm
Package 1 width
7 cm
Package 1 length
13 cm
Package 1 weight
0.05 kg
Unit type of package 2
S01
Number of units in package 2
15
New Package 2 GTIN 14
13666916029043
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
0.948 kg
New Package 3 GTIN 14
23666916029040

Expand all

Technical Drawings

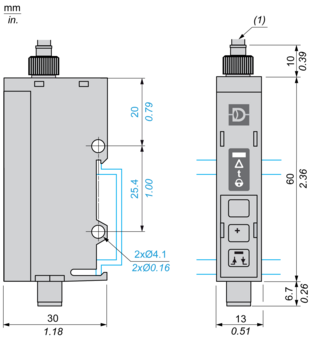

Dimensions

epds

Mounting and Clearance

epds

Wiring Schemes

epds
epds
