XUYAFV966S

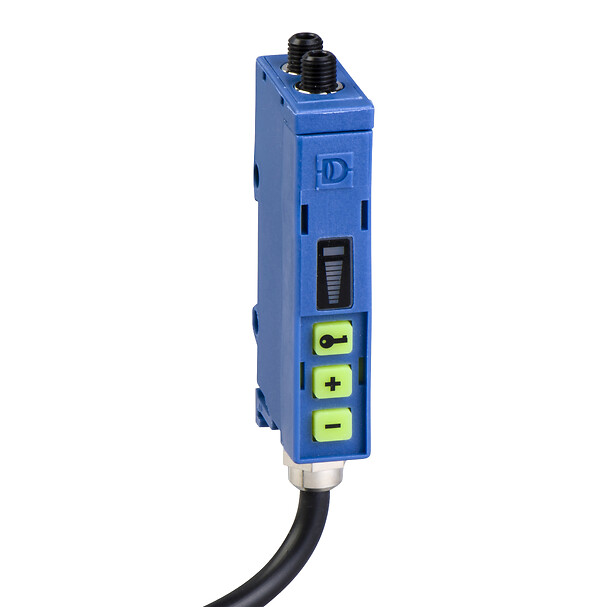

Photoelectric fiber amplifier XUY, glass, PNP/NPN, 12...24 VDC, cable 2 m
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUY
Series name
Application assembly
Display type
Bar graph
Enclosure material
Polycarbonate
Electronic sensor type
Photo-electric sensor
Specific application of photoelectric detector
Detection in aggressive environments
detection of items exiting an oven (high temperature fibers)
detection of presence of parts in a plastic mould
monitoring position or presence of parts on an assembly or packing machine
detection of items exiting an oven (high temperature fibers)
detection of presence of parts in a plastic mould
monitoring position or presence of parts on an assembly or packing machine
Sensor design
Fiber design
Electrical connection
Cable
Material
Plastic
Emission
Red LED
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP and NPN
Product certifications
CE
cULus
cULus
Setting-up
Sensitivity adjustment using +/- teach mode
Current consumption
<= 40 mA no-load
Output type
Solid state
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage state 0 guaranteed
< 1.4 V
Voltage state 1 guaranteed
> 3 V
Switching frequency
< 1 kHz
Voltage drop
<2 V (closed state)
Delay response
-
Delay recovery
5 ms glass fibre optics 3 mm
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.117 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.98 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
