XUYB989SP

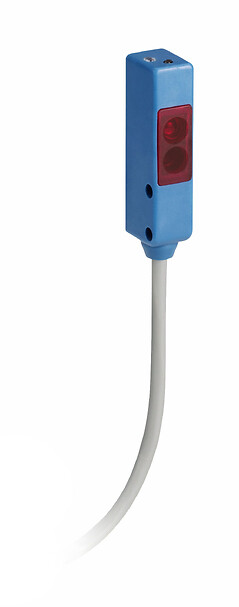

photo-electric sensor - XUY 989 - polarised - Sn 1m - 12..24VDC - cable 2m
END OF COMMERCIALISATION End of commercialization date : January 04th 2022 End of service date : January 04th 2022
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Miniature
Detection system
Polarised reflex
Sensing range
> 0.3...1 m
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Conveyor system and access control series
Emission
-
Enclosure material
ABS
Lens material
PMMA
Cover material
PVC
Output type
Solid state
[Us] rated supply voltage
-
Voltage drop
<2 V at 100 mA (closed state), <1 V at 10 mA (closed state)
Switching capacity in mA
100 mA (overload and short-circuit protection)
Current consumption
< 25 mA no-load
Delay response
1 ms
Supply voltage limits
10-30 V DC
Immunity to ambient light
10000 lux natural light, 5000 lux incandescent bulb
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
91 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Optical axis
- (2) Accuracy adjustment
Connections and Schemes

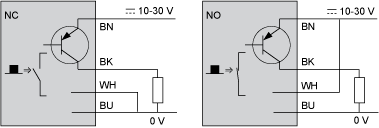

PNP Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
