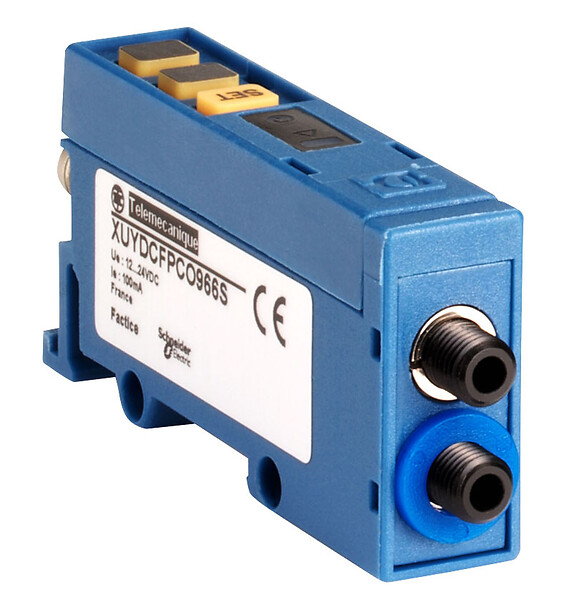

Photoelectric fiber optic contrast sensor XUY, Sn 4 mm, M8, PNP/NPN, teach, discrete solid state

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application packaging
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Fiber design
ETIM classification
ETIM 9 - EC002651 - Optical fibre sensor/optical fibre amplifier
Material
Plastic
Lens material
Polyamide
Enclosure material
Polyamide
[Sn] nominal sensing distance
18-18 mm with fiber optic XUYFPDC61/101, 4-4 mm with fiber optic XUYFPDCM861/M8101
Wiring technique
4-wire
Detection system
Diffuse
Indivisible sale quantity
1
Electrical connection
1 male connector M8, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Current consumption
50 mA
Emission
White LED (450 - 650 nm)
Setting-up
With sensitivity adjustment
Pulse frequency
40 kHz
Status LED
Output state indication: 1 LED
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Spot diameter
1.5 mm
Delay response
25 µs
Maximum delay recovery
-
Product weight
0.047 kg
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for storage
-20…80 °C
Immunity to ambient light
10000 lux natural light, 20000 lux incandescent bulb
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032022
Package 1 height
3.5 cm
Package 1 width
7 cm
Package 1 length
13 cm
Package 1 weight
0.047 kg
Unit type of package 2
S02
Number of units in package 2
35
New Package 2 GTIN 14
13666916032029
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
2.123 kg
New Package 3 GTIN 14
23666916032026

Expand all

Technical Drawings

Dimensions

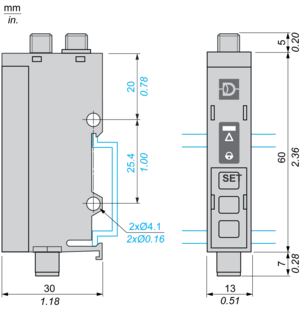

Sensors Dimensions

epds

Dimensions

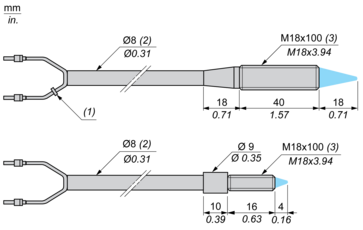

Fibres Dimensions (To be Ordered Separately)
