XUYFA983003COS

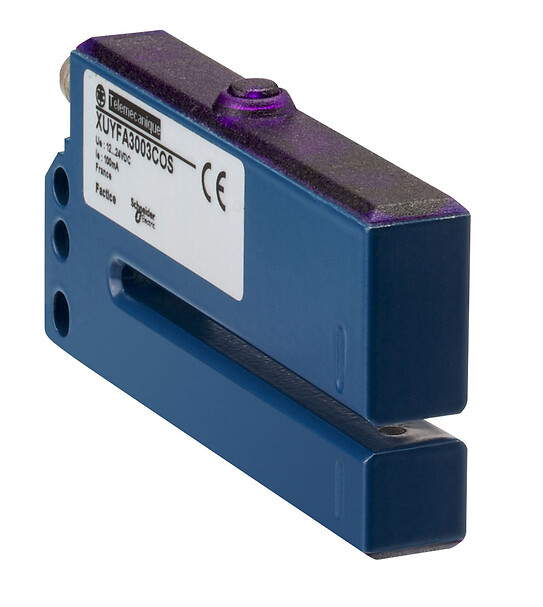

Photoelectric label fork sensor XUY, 12...24 VDC, M8, teach, label detection
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Fork
Detection system
Thru beam
Emission
Infrared, continuous
Material
Metal
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Packaging series
Enclosure material
Anodised aluminium
Type of output signal
Discrete
Output type
Solid state
Voltage drop
<2 V (closed state)
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
No object present: 1 LED (green), adjustment mode and keypad locking: 1 LED (red)
Current consumption
40 mA no-load
Switching capacity in mA
100 mA (overload and short-circuit protection)
Maximum delay recovery
-
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
7 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.062 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.474 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Optical axis
Wiring Schemes
Connector
- 1 : BN: Brown
- 2 : WH: White (input)
- 3 : BU: Blue
- 4 : BK: Black (PNP and NPN outputs)
Wiring Schemes
NO or NC Programmable Function
- 1 : BN: Brown
- 2 : WH: White (input)
- 3 : BU: Blue
- 4 : BK: Black (PNP and NPN outputs)
- Object detected
