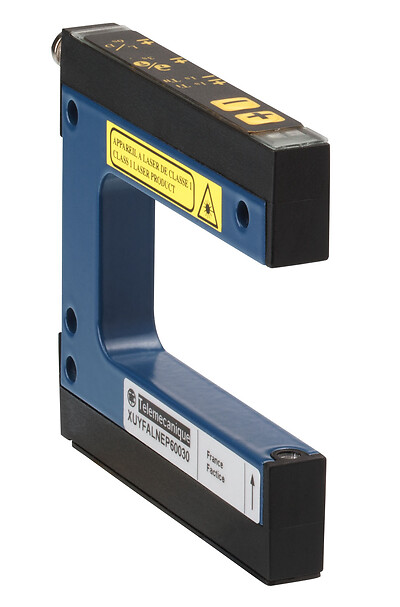

XUYFALNEP100050
Photoelectric sensors XU, XUY, fork, laser, teach, 50X95mm, 12...24 VDC, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Fork
Detection system
Thru beam
Emission
Infrared laser, modulated - class 1 conforming to IEC 825-1
Material
Metal/plastic
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Detection of reference marks
detection on small conveyor
detection on vibrating rail
detection of transparent object
detection on small conveyor
detection on vibrating rail
detection of transparent object
Enclosure material
Painted aluminium and polyamide/glass
Type of output signal
Discrete
Output type
Solid state
Status LED
Adjustment mode and keypad locking: 1 LED (red), output state: 1 LED (yellow)
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Current consumption
40 mA no-load
Setting-up
Self teaching
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.5 CENTIMETER
Package 1 width
16 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.098 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
16
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.793 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
1.5 CENTIMETER
Package 3 width
13 CENTIMETER
Package 3 length
16 CENTIMETER
Package 3 weight
0.098 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Optical axis
Wiring Schemes
M8 Connector
- 1 : BN: Brown
- 2 : WH: White
- 3 : BU: Blue
- 4 : BK: Black
Wiring Schemes
4-Wire, PNP/NPN Outputs
- 1 : BN: Brown
- 2 : WH: White
- 3 : BU: Blue
- 4 : BK: Black
- BN : Brown
- WH : White
- BK : Black
- BU : Blue
