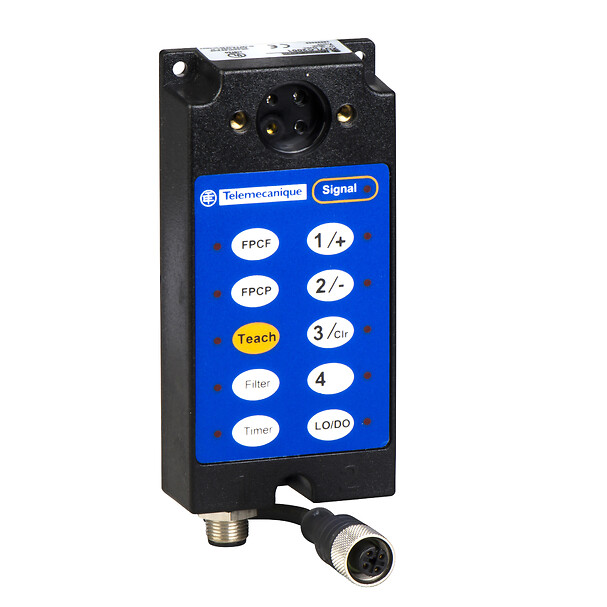

XUYLC2001
Photoelectric fiber amplifier XUY, PNP/NPN, 1 colors, 1 color
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUY
Series name
Application
Enclosure material
Polycarbonate strong housing
Electronic sensor type
Photo-electric sensor
Sensor design
Fiber design
Material
Plastic
Electrical connection
1 male connector M12, 4 pins
Emission
Red LED
[Us] rated supply voltage
24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
1 PNP/NPN
Setting-up
Sensitivity adjustment with teach mode
Current consumption
120 mA no-load
Switching frequency
-
Voltage drop
<0.5 V at 10 mAat low level, <2.2 V at 100 mA
Delay response
-
Delay recovery
1 ms XUYFPCF., 20 ms XUYFPCP.
IP degree of protection
IP65
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.7 CENTIMETER
Package 1 width
11.2 CENTIMETER
Package 1 length
16.3 CENTIMETER
Package 1 weight
0.319 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.3 KILOGRAM
Indivisible sale quantity
1
