Photoelectric sensors XU, XUY, diffuse, analog laser, Sn 85 mm, 12...24 VDC, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Compact 50 x 50
Detection system
Diffuse
Material
Plastic
Supply circuit type
DC
Wiring technique
4-wire
Analogue output range
0...10 V
Electrical connection
1 male connector M12, 4 pins
Product specific application
Measuring thickness of mechanical parts
position control of robot arm
position control of robot arm
Emission
Red laser, pulsed, wavelength: 650 nm - class 1 conforming to IEC 825-1
Enclosure material
ABS, anti-shock
Spot diameter
0.8 mm at 65 mm
Spot dimension
Ø 0.8 mm at 65 mm
Status LED
Supply on: 1 LED (green), dirty: 1 LED (red)
[Us] rated supply voltage
24 V DC with reverse polarity protection
Switching capacity in mA
3 mA (overload and short-circuit protection)
Voltage drop
<2.4 V (closed state)
Current consumption
35 mA no-load
Delay response
30 ms for output circuit
Setting-up
Parametering by buttons
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
685 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) 2 elongated holes Ø 4.3 x 4
- (2) Transmitter optical axis
- (3) Receiver optical axis
Wiring Schemes
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- 1 : Brown
- 2 : White
- 3 : Blue
- 4 : Black
- (+) BN : Brown
- WH : White
- (-) BU : Blue
- BK : Black
- (1) Shielding
Adjustment Curves
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36769641
2024-02-07
36119819
Document name
Date
Size
7/18/2024
115191
7/18/2024
13819
7/18/2024
15145
7/18/2024
15818
7/18/2024
16480
7/18/2024
16742
7/18/2024
17092
7/18/2024
19091
7/18/2024
19388
7/18/2024
19703
7/18/2024
19965
7/18/2024
19997
7/18/2024
20120
7/18/2024
27288
7/18/2024
34136
Document name
Date
Size
2025-02-28
233972
2025-02-28
227249
Document name
Date
Size
2924-06-27
206669
Document name
Date
Size
Expand all
Related products & accessories
XUZA51S

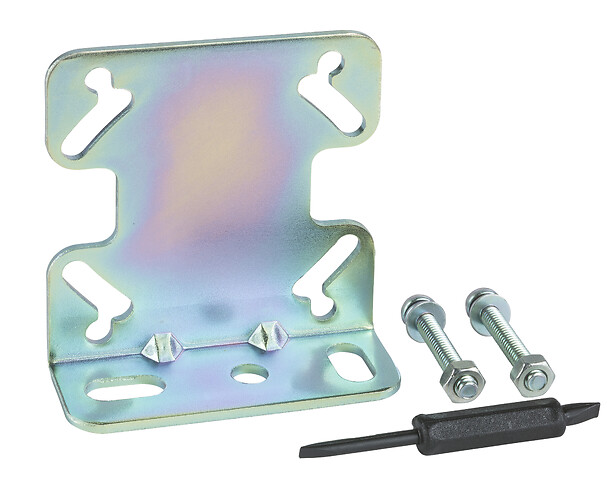

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK S, stainless steel
