XUYPS1LCO965S

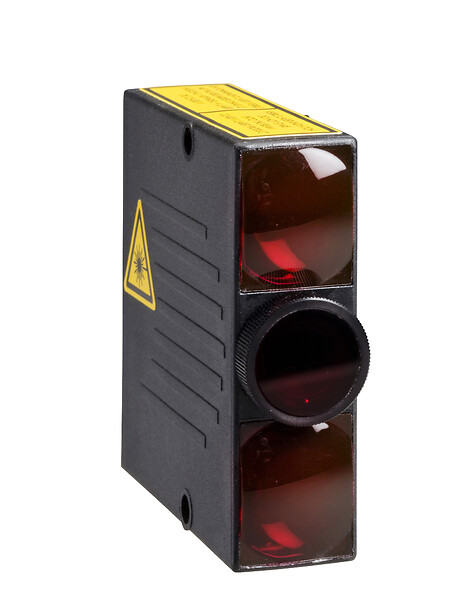

Photoelectric special product XUY, BGS, laser, Sn 300 mm, 12...24 VDC, M8

arrow

COMMERCIALISED

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application, materials handling
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Compact
Product specific application
Control of level
detection of components on a printed circuit
monitoring for crack on a component
monitoring of small parts on production machine
suppression of a background
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Material
Plastic
Lens material
PMMA
Enclosure material
Glass impregnated nylon
[Sn] nominal sensing distance
50-300 mm
Wiring technique
4-wire
Detection system
Diffuse with background suppression
Indivisible sale quantity
1
Sensing range
> 0...0.3 m
Electrical connection
1 male connector M8, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Current consumption
35 mA
Emission
Red laser, pulsed, wavelength: 675 nm - class 2
Setting-up
Manual adjustment of focusing
Status LED
Output state: 1 LED (green), NC function: 1 LED (none), NO function: 1 LED (red), time delay active: 1 LED (red)
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Spot diameter
0 mm manual adjustment
Delay response
40 ms for output circuit depending on wiring
Maximum delay recovery
-
Product weight
0.081 kg
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for storage
-20…60 °C
Immunity to ambient light
10000 lux natural light, 500 lux incandescent bulb
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032015
Package 1 height
3.4 cm
Package 1 width
7.4 cm
Package 1 length
12.8 cm
Package 1 weight
0.073 kg
Unit type of package 2
S02
Number of units in package 2
35
New Package 2 GTIN 14
13666916032012
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
2.86 kg
New Package 3 GTIN 14
23666916032019

Expand all

Technical Drawings

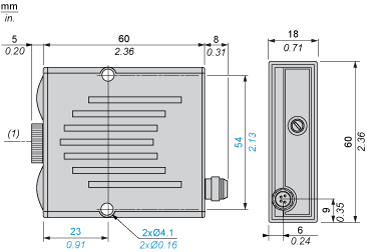

Dimensions

epds
  • (1) Optical axis of laser

Wiring Schemes

M8 Connector

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black

Wiring Schemes

NO Function

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black

NO Function

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black
  • BN : Brown
  • WH : White
  • BU : Blue
  • BK : Black
  • (1) Output

Wiring Schemes

NC Function

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black
  • BN : Brown
  • WH : White
  • BU : Blue
  • BK : Black
  • (1) Output

NC Function

epds
  • 1 : Brown
  • 2 : White
  • 3 : Blue
  • 4 : Black
  • BN : Brown
  • WH : White
  • BU : Blue
  • BK : Black
  • (1) Output
  • BN : Brown
  • WH : White
  • BU : Blue
  • BK : Black
  • (1) Output
