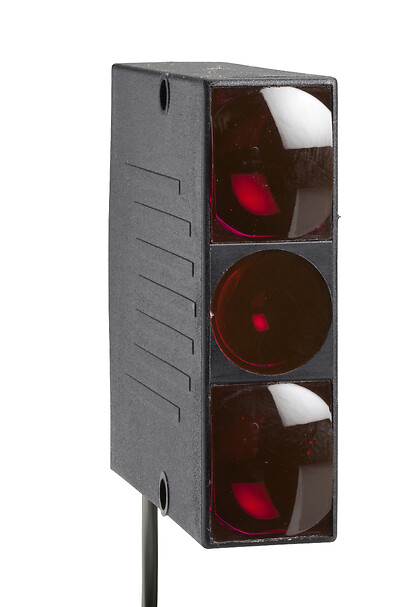

XUYPS2945S

Photoelectric sensor XUY, BGS, 2 channels, Sn 600 mm, 12...24 VDC, cable 2 m

END OF COMMERCIALISATION End of commercialization date : April 20th 2022 End of service date : April 20th 2022

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Compact
Product specific application
2 channels triangulation
control of filling
detection of object on conveyor against reflective background
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Material
Plastic
Enclosure material
Glass impregnated nylon
[Sn] nominal sensing distance
50-600 mm
Wiring technique
4-wire
Detection system
Diffuse with background suppression
Product certifications
CE
Range compatibility
TE PHOTOELEC SSRS XU
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V (closed state)
Current consumption
< 1.5 mA no-load
Emission
Infrared LED, modulated
Status LED
Output state: 1 LED (green)
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Switching frequency
> 370 Hz
Delay response
1.8 ms
Maximum delay recovery
-
Product weight
0.135 kg
IP degree of protection
IP65 conforming to IEC 60529
Ambient air temperature for storage
-20…60 °C
Immunity to ambient light
10000 lux natural light, 1300 lux incandescent bulb
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916146989
New Package 2 GTIN 14
13666916146986
New Package 3 GTIN 14
23666916146983

Expand all

Technical Drawings

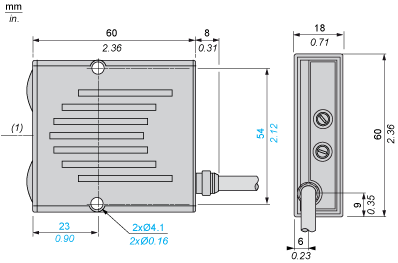

Dimensions

epds
  • (1) Optical axis

Mounting and Clearance

Two independent sensors with triangulation: A, B

epds
  • (1) Detected zones

Mounting and Clearance

Immunity to reflection: A and B

epds
  • (1) Detected zones
  • (1) Detected zones
  • (2) Mirror

Mounting and Clearance

Detection of contrasting objects: A or B

epds
  • (1) Detected zones
  • (1) Detected zones
  • (2) Mirror
  • (1) Detected zones

Mounting and Clearance

Monitoring of distance: A xor B

epds
  • (1) Detected zones
  • (1) Detected zones
  • (2) Mirror
  • (1) Detected zones
  • (1) Detected zones

Wiring Schemes and Outputs

Two Independent Sensors with Triangulation: A, B

epds

Two Independent Sensors with Triangulation: A, B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output

Wiring Schemes and Outputs

Immunity to Reflection: A and B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output

Immunity to Reflection: A and B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Immunity to Reflection: A and B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Immunity to Reflection: A and B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Wiring Schemes and Outputs

Detection of Contrasting Objects: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Detection of Contrasting Objects: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Wiring Schemes and Outputs

Monitoring of Distance: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Monitoring of Distance: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Monitoring of Distance: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

Monitoring of Distance: A or B

epds
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Zone A output
  • (2) Zone B output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output
  • BN : Brown
  • BU : Blue
  • BK : Black
  • WH : White
  • (1) Output

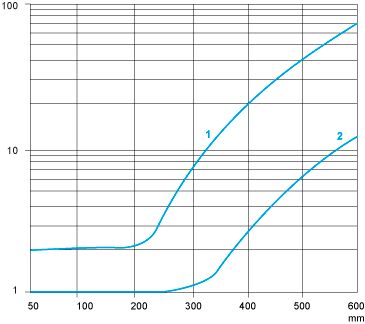

Detection Curves

epds
  • 1 : Black 6%
  • 2 : Grey 18% - Distance (mm) set on 92% (Kodak 1527795)
