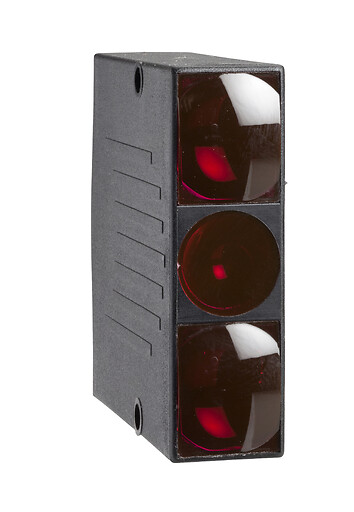

XUYPS2CO945S
Photoelectric sensors XU, XUY, BGS, 2 channels, Sn 600 mm, 12...24 VDC, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Compact
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP and NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
2 channels triangulation
control of filling
detection of object on conveyor against reflective background
control of filling
detection of object on conveyor against reflective background
Emission
Infrared LED, modulated
Enclosure material
Glass impregnated nylon
Status LED
Output state: 1 LED (green)
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Voltage drop
<2 V (closed state)
Switching capacity in mA
100 mA (overload and short-circuit protection)
Maximum delay recovery
-
Current consumption
< 1.5 mA no-load
Delay response
1.8 ms
Supply voltage limits
10-30 V DC
Immunity to ambient light
10000 lux natural light, 1300 lux incandescent bulb
IP degree of protection
IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.6 CENTIMETER
Package 1 width
7.1 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
0.079 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.398 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
28
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

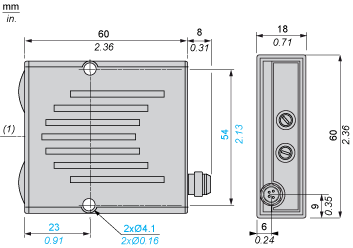

Dimensions
- (1) Optical axis
Mounting and Clearance
Two independent sensors with triangulation: A, B
- (1) Detected zones
Mounting and Clearance
Immunity to reflection: A and B
- (1) Detected zones
- (1) Detected zones
- (2) Mirror
Mounting and Clearance
Detection of contrasting objects: A or B
- (1) Detected zones
- (1) Detected zones
- (2) Mirror
- (1) Detected zones
Mounting and Clearance
Monitoring of distance: A xor B
- (1) Detected zones
- (1) Detected zones
- (2) Mirror
- (1) Detected zones
- (1) Detected zones
Wiring Schemes and Outputs
Two Independent Sensors with Triangulation: A, B
Two Independent Sensors with Triangulation: A, B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
Wiring Schemes and Outputs
Immunity to Reflection: A and B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
Immunity to Reflection: A and B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Immunity to Reflection: A and B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Immunity to Reflection: A and B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Wiring Schemes and Outputs
Detection of Contrasting Objects: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Detection of Contrasting Objects: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Wiring Schemes and Outputs
Monitoring of Distance: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Monitoring of Distance: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Monitoring of Distance: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Monitoring of Distance: A or B
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Zone A output
- (2) Zone B output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
- (1) Output
Detection Curves
- 1 : Black 6%
- 2 : Grey 18% - Distance (mm) set on 92% (Kodak 1527795)
