XUYPS989SP

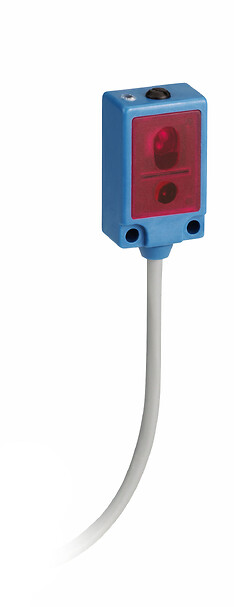

Photoelectric miniature sensor XUY, BGS, Sn 0.08 m, cable 2 m, PNP
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Sensor name
XUY
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Product specific application
Conveyor system and access control series
ETIM classification
ETIM 9 - EC002719 - Light scanner with background masking
Cover material
PVC
Material
Plastic
Lens material
PMMA
Enclosure material
ABS
[Sn] nominal sensing distance
1-1 m polarised reflex, 4-4 m thru beam, 0.08-0.08 m diffuse with background suppression, 0.25-0.25 m diffuse with adjustable sensitivity
Wiring technique
4-wire
Detection system
Diffuse with background suppression
Indivisible sale quantity
1
Sensing range
> 0...0.3 m
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
-
Supply circuit type
DC
Switching capacity in mA
100 mA (overload and short-circuit protection)
Voltage drop
<2 V at 100 mA (closed state), <1 V at 10 mA (closed state)
Current consumption
< 25 mA no-load
Emission
-
Pulse frequency
6 kHz
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Delay response
1 ms
Product weight
0.075 kg
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Ambient air temperature for storage
-20…80 °C
Immunity to ambient light
10000 lux natural light, 5000 lux incandescent bulb
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032008
Package 1 height
3.5 cm
Package 1 width
7 cm
Package 1 length
13 cm
Package 1 weight
0.075 kg
Unit type of package 2
S01
Number of units in package 2
15
New Package 2 GTIN 14
13666916032005
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.313 kg
New Package 3 GTIN 14
23666916032002
Expand all
Technical Drawings
Dimensions
- (1) Optical axis
- (2) Accuracy adjustment

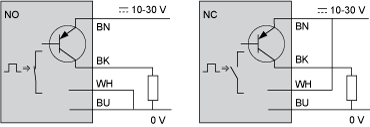

Connections and Schemes
PNP Output
- BN : Brown
- BU : Blue
- BK : Black
- WH : White
