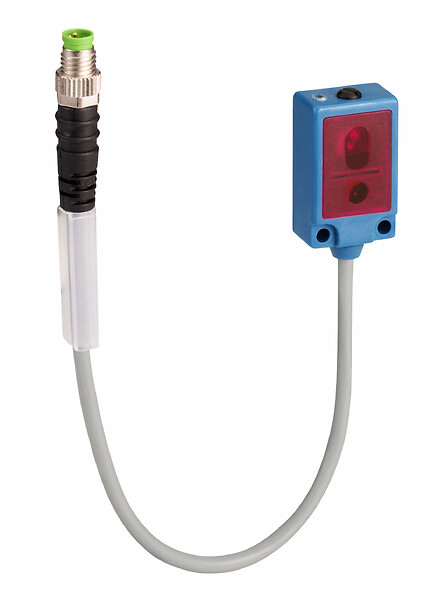

XUYPSCO989SP
Photoelectric sensors XU, XUY 989, BGS, Sn 0.08 m, 12...24 VDC, M8
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUY
Series name
Application
Product specific application
Conveyor system and access control series
Enclosure material
ABS
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
1 male connector M8, 4 pins
Material
Plastic
Wiring technique
4-wire
Detection system
Diffuse with background suppression
Emission
-
Discrete output function
1 NO or 1 NC programmable
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
[Us] rated supply voltage
-
Cover material
PUR
Current consumption
< 25 mA no-load
Output type
Solid state
Switching capacity in mA
100 mA (overload and short-circuit protection)
Lens material
PMMA
Sensing range
> 0...0.3 m
Voltage drop
<2 V at 100 mA (closed state), <1 V at 10 mA (closed state)
Delay response
1 ms
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.4 CENTIMETER
Package 1 width
7.4 CENTIMETER
Package 1 length
12.6 CENTIMETER
Package 1 weight
0.04 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
35
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.776 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
13 CENTIMETER
Package 3 width
3.5 CENTIMETER
Package 3 length
7 CENTIMETER
Package 3 weight
0.04 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Optical axis
- (2) Accuracy adjustment
Connections and Schemes
M8
Connections and Schemes
PNP Output
- 1/BN : Brown
- 2/WH : White
- 3/BU : Blue
- 4/BK : Black
