XUZK2004

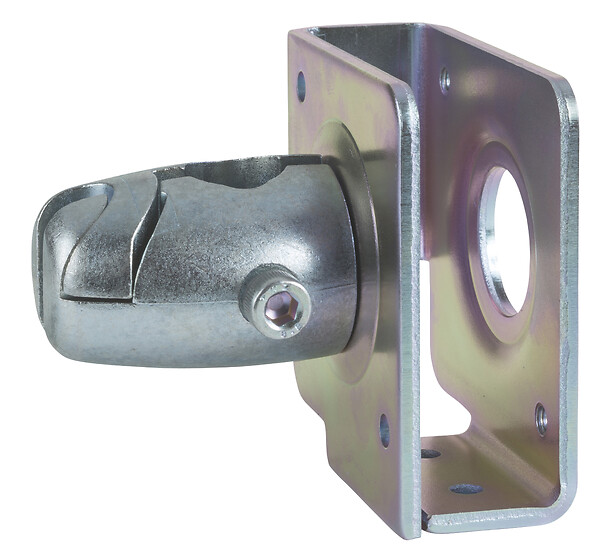

Photoelectric sensors XU, accessory for sensor, 3D fixing kit, protective housing with ball joint, XUK

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Accessory / separate part type
Fixing bracket
Accessory / separate part category
Mounting and fixing accessories
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
11 CENTIMETER
Package 1 weight
0.295 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
10
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.313 KILOGRAM
Unit type of package 3
BAG
Number of units in package 3
1
Package 3 height
3 CENTIMETER
Package 3 width
6.5 CENTIMETER
Package 3 length
11 CENTIMETER
Package 3 weight
0.295 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions
