XX512A2PAM8

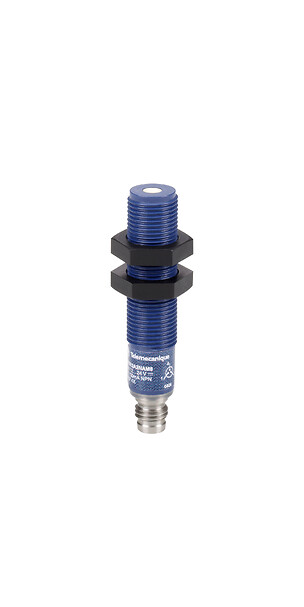

Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, Sn 0.1 m, NO, M8 connector
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XX5
Sensor design
Cylindrical M12
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Discrete output function
1 NO
Wiring technique
3-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP
Electrical connection
Male connector M8 3 pins
Enclosure material
ULTEM
Front material
Epoxy
Thread type
M12 x 1
Voltage drop
1 VOLT
Minimum size of detected object
Cylinder diameter 2.5 mm, flat bar 1 mm wide
Delay first up
20 MILLISECOND
Current consumption
25 mA
Status LED
Supply on: 1 LED (green), output state: 1 LED (yellow)
Switching frequency
<= 125 Hz
Delay response
3 MILLISECOND
Delay recovery
3 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
UL
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.287 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Side by side
- e : respect the distances indicated on the detection curves
Minimum Mounting Distances
Face to face
- e : respect the distances indicated on the detection curves
- e > 4 x Sn
Wiring Diagram
3-Wire Type
- (1) (+)
- (3) (-)
- (4) Output
- BN Brown
- BU Blue
- BK Black
Curves
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
